Plant Cabinet VPD Control: Fan, Humidifier & Sensor

A plant cabinet VPD product chooser: size a circulation fan, humidifier, sensor, and humidity controller to a steady 0.8-1.2 kPa band.

Patrick Ivern · 2026-06-17 · 16 min read

Key Takeaways

• Control VPD, not raw percent humidity: the same RH means different VPD at different temperatures.
• Target roughly 0.8-1.2 kPa for vegetative tropical aroids; lower for unrooted cuttings.
• The sensor and fan are the floor; a deadband controller is the highest-leverage upgrade.
• Stagnant high humidity above ~85% RH drives Botrytis, so always keep air moving.
• Size each tool to a number: CFM, mL/hr, accuracy in %RH, and adjustable deadband.

Your IKEA-style cabinet swings from soggy to bone-dry, and your aroids show edge burn or leaf spot. The fix is not simply adding more humidity. It is holding a measured vapor pressure deficit band with the right four tools, each sized to a number you can check.

What should you actually buy to control plant cabinet VPD?

Buy four things, in priority order: an accurate canopy sensor, a circulation fan, a humidifier, and a humidity controller to tie them together. The sensor and fan are the non-negotiable floor, because you cannot manage a VPD you do not measure or circulate.

The controller is the highest-leverage upgrade once the floor is in place. It holds relative humidity inside a narrow band automatically, which stabilizes VPD far better than a timer or a manual routine.

Here is the short verdict by role. Get a logging thermo-hygrometer so you can compute VPD at canopy height.

Add a low-noise clip fan to break the leaf boundary layer. Then add a controller-gated humidifier so the band holds overnight without you babysitting it.

This chooser sizes each tool to a measurable spec rather than to a vague humidity feeling. The rest of this guide explains the mechanism, the numbers, and the specific products that meet them. For the deep physiology behind the targets, see our companion guide to master VPD in plant cabinets.

Why does VPD, not percent humidity, control transpiration?

Vapor pressure deficit drives transpiration because water moves from the saturated air inside the leaf to the drier air outside, down a vapor-pressure gradient. VPD measures that gradient in kilopascals. Relative humidity cannot, because the same percent reading means different VPD at different temperatures.

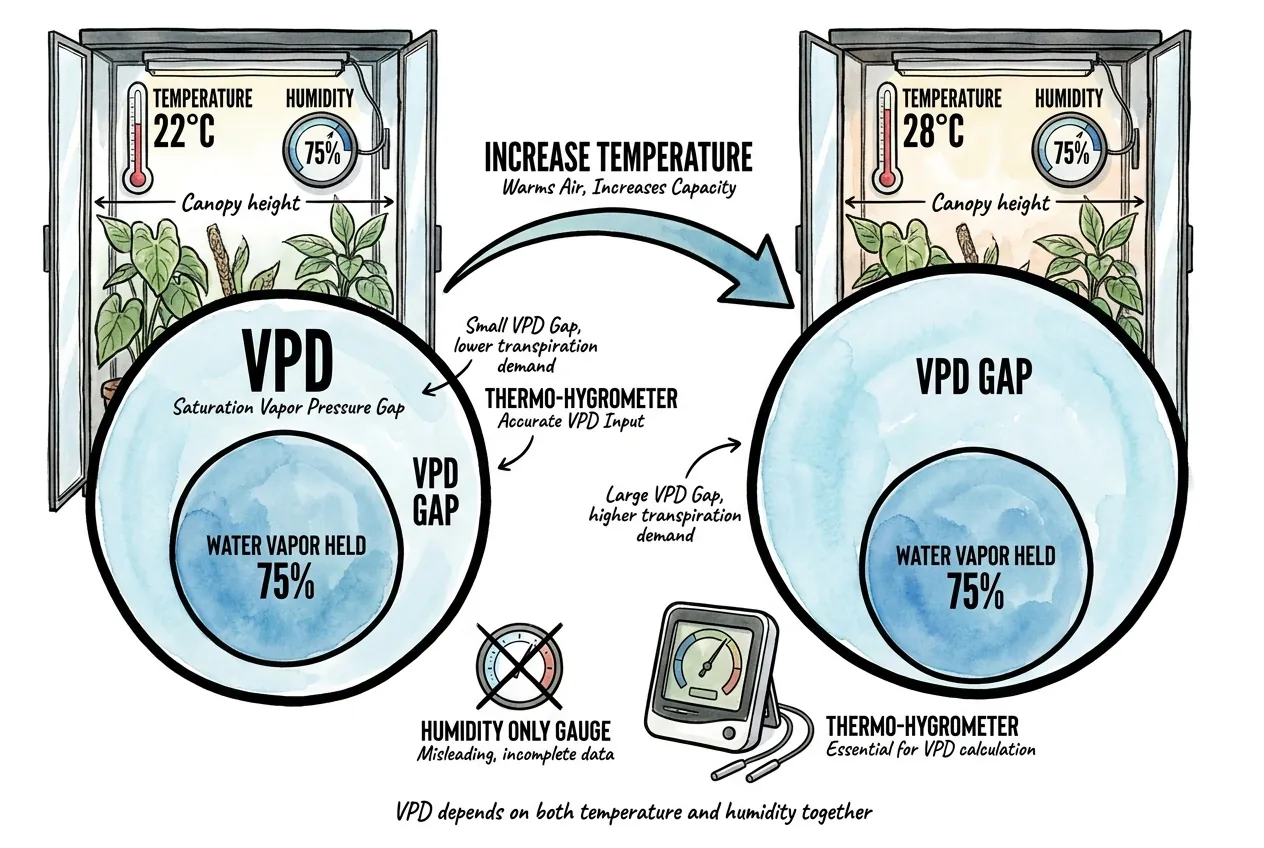

What is VPD and how does temperature change it?

VPD is the gap between how much water vapor the air could hold when saturated and how much it currently holds. Saturation vapor pressure climbs steeply as air warms.

So a cabinet at 75 percent humidity and 22 degrees Celsius sits in a different VPD than the same 75 percent at 28 degrees. That is why a single humidity dial is misleading.

You must compute VPD from temperature and humidity together, read at canopy height. This is the core reason a thermo-hygrometer beats a humidity-only gauge.

How does VPD affect stomata and water loss?

As VPD rises, transpiration first increases, then the plant defends itself. Guard cells lose turgor and stomata close to protect leaf water potential, which is a feedforward response.

A peer-reviewed review of plant responses to rising VPD describes this closing as a protective mechanism that also cuts carbon dioxide uptake and growth. Most plants transpire comfortably at a moderate VPD. Transpiration suppression appears in most crops above roughly 2.0 kPa.

The practical takeaway is simple. Keep VPD inside a moderate band and stomata stay open, water and nutrients keep moving, and growth continues.

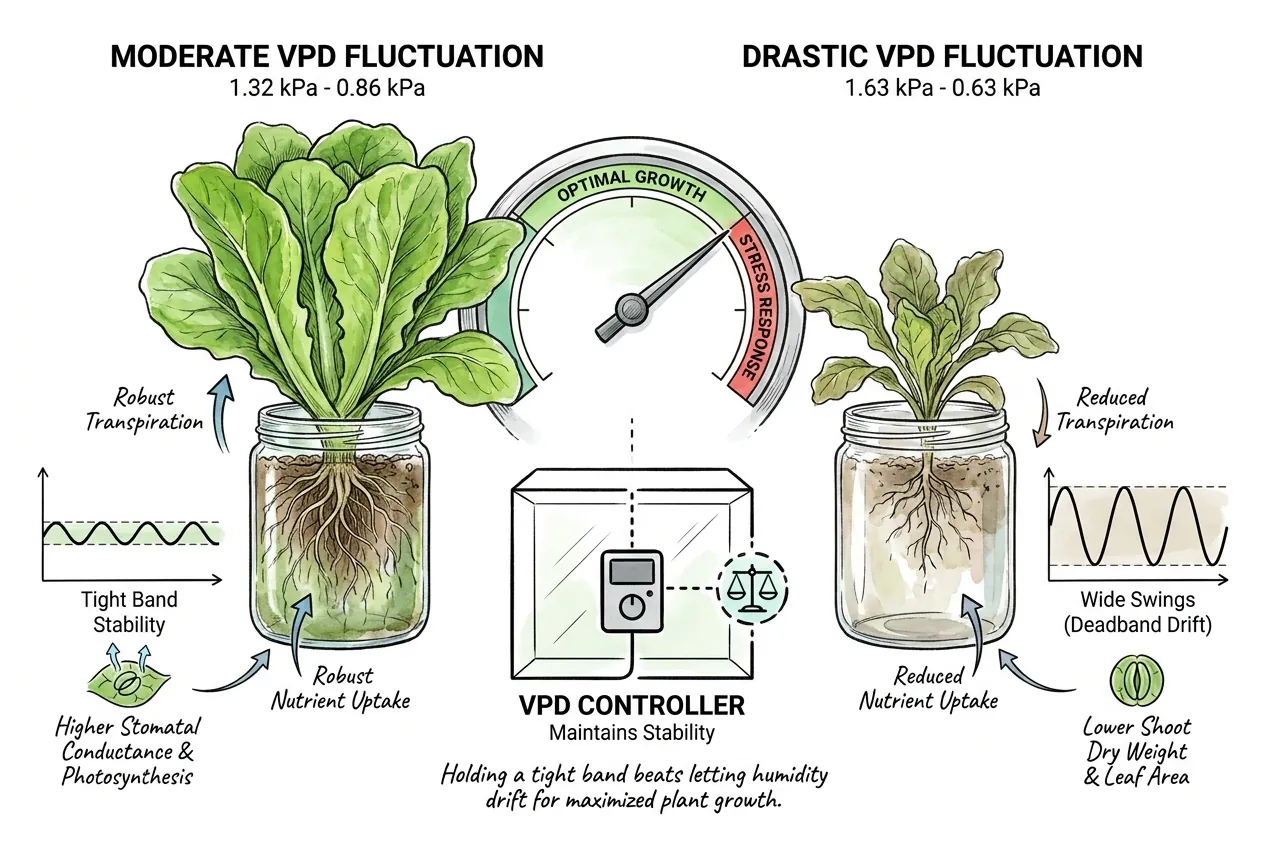

Why does VPD stability matter as much as the average?

Wide VPD swings hurt growth even when the average looks fine. A controlled lettuce study compared a moderate fluctuation against a drastic one and measured the difference.

The drastic swing alternated 1.63 kPa with 0.63 kPa, while the moderate swing alternated 1.32 kPa with 0.86 kPa. After three weeks the drastic group showed 15 percent lower shoot dry weight and 29 percent lower leaf area.

This is the scientific case for a controller. Holding a tight band beats letting humidity drift, which is exactly what a deadband-based controller does.

What VPD band should a tropical aroid cabinet hold?

Aim for a working band of roughly 0.8 to 1.2 kPa for vegetative tropical foliage. That keeps transpiration active without pushing the plant into water stress. Unrooted cuttings want it lower, around 0.3 to 0.5 kPa, because they cannot yet replace lost water.

What humidity does that band correspond to?

At common cabinet temperatures of 22 to 26 degrees Celsius, that band maps to roughly 60 to 75 percent humidity. The exact percent shifts with temperature, which is why you set the target in VPD first.

Then you translate the VPD target into a humidity setpoint at the cabinet’s actual temperature. Doing it the other way around, fixing a humidity number and ignoring temperature, is how cabinets drift out of band.

This is also where a light plan intersects with humidity, since warmer canopies under strong light raise VPD. Our guide to PPFD and DLI for houseplants covers that side of the balance.

Why can you not just maximize humidity?

Because stagnant, very humid air invites fungal and bacterial leaf spot. University extension guidance on Botrytis is blunt about the danger zone.

NC State Extension reports that Botrytis grows best at 60 to 70 degrees Fahrenheit combined with humidity above roughly 85 percent. It is managed by avoiding prolonged leaf wetness and by limiting long high-humidity periods.

So the goal is a held VPD band plus moving air, not the highest possible percent humidity. That single idea decides why the fan and controller matter as much as the humidifier.

How do you compare the four tools by measurable spec?

Compare each tool by the single number that decides whether it can hold your band. The table below pairs each role with its critical spec, a sensible target, and the honest weakness to watch.

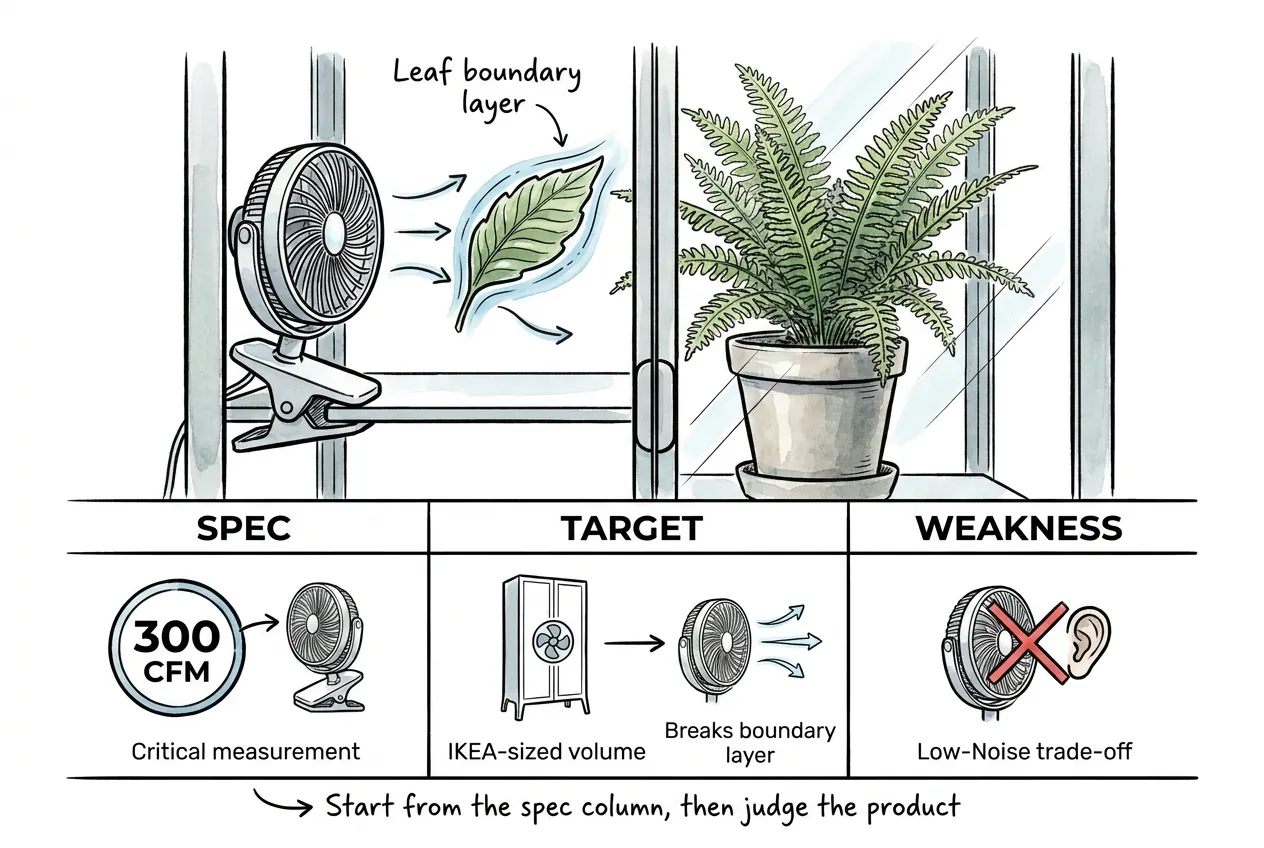

How do you read this selection table?

Start from the spec column, not the brand. Each row names the one measurement that determines fit, so you can judge any product, not only the ones here.

The target column is a starting point for an IKEA-cabinet-sized volume, not a hard rule. The weakness column is the counter-indication you accept when you buy that class.

Use the table as a filter. If a product does not publish the critical spec, treat that as a reason to look elsewhere.

Which circulation fan breaks the leaf boundary layer?

A low-noise clip fan rated around 300 CFM, run on a low continuous speed, is enough for a cabinet. The mechanism it solves is the leaf boundary layer, the thin film of still, humid air clinging to each leaf.

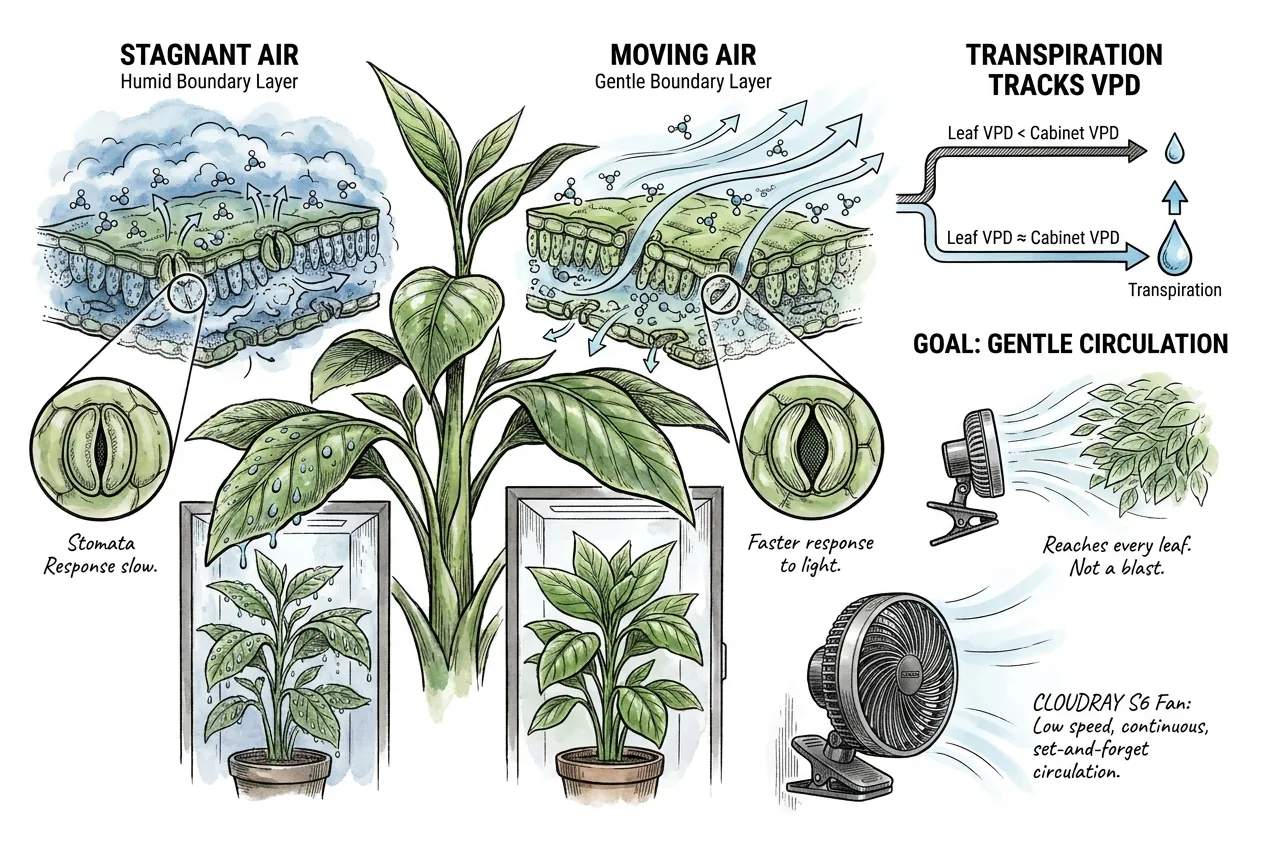

Why does air movement matter physiologically?

Total leaf conductance to water vapor is stomatal conductance and boundary-layer conductance acting in series. Boundary-layer conductance depends on airflow near the leaf surface.

When air is stagnant, that film thickens, leaf-zone humidity climbs, and the leaf’s real VPD falls below the cabinet reading. Moving air thins the film so transpiration tracks the true cabinet VPD.

Air movement also speeds the stomatal response to light. The goal is gentle, continuous circulation that reaches every leaf, not a high-velocity blast that desiccates foliage.

What fan meets the spec?

For this role the critical measurement is rated airflow with low noise so you can run it continuously. The AC Infinity CLOUDRAY S6 6-inch clip fan delivers up to roughly 325 CFM at about 31 dBA. It draws only about 11 watts and uses an EC motor with 10 speeds.

Buy on Amazon (B0B179135B) Use this when you want set-and-forget circulation on a low speed, clipped to a shelf and aimed across the canopy rather than straight at it. Skip the premium oscillating model if you run a single small cabinet, because a basic high-airflow clip fan does the same job for less. The oscillation motor also adds a moving part that can wear.

Which humidifier holds the band overnight?

Pick a humidifier whose mist output exceeds your cabinet’s leak rate at the target humidity, paired with a tank that survives an unattended cycle. For most IKEA-cabinet builds a unit rated around 300 to 500 mL/hr with a 6-liter tank covers that with margin.

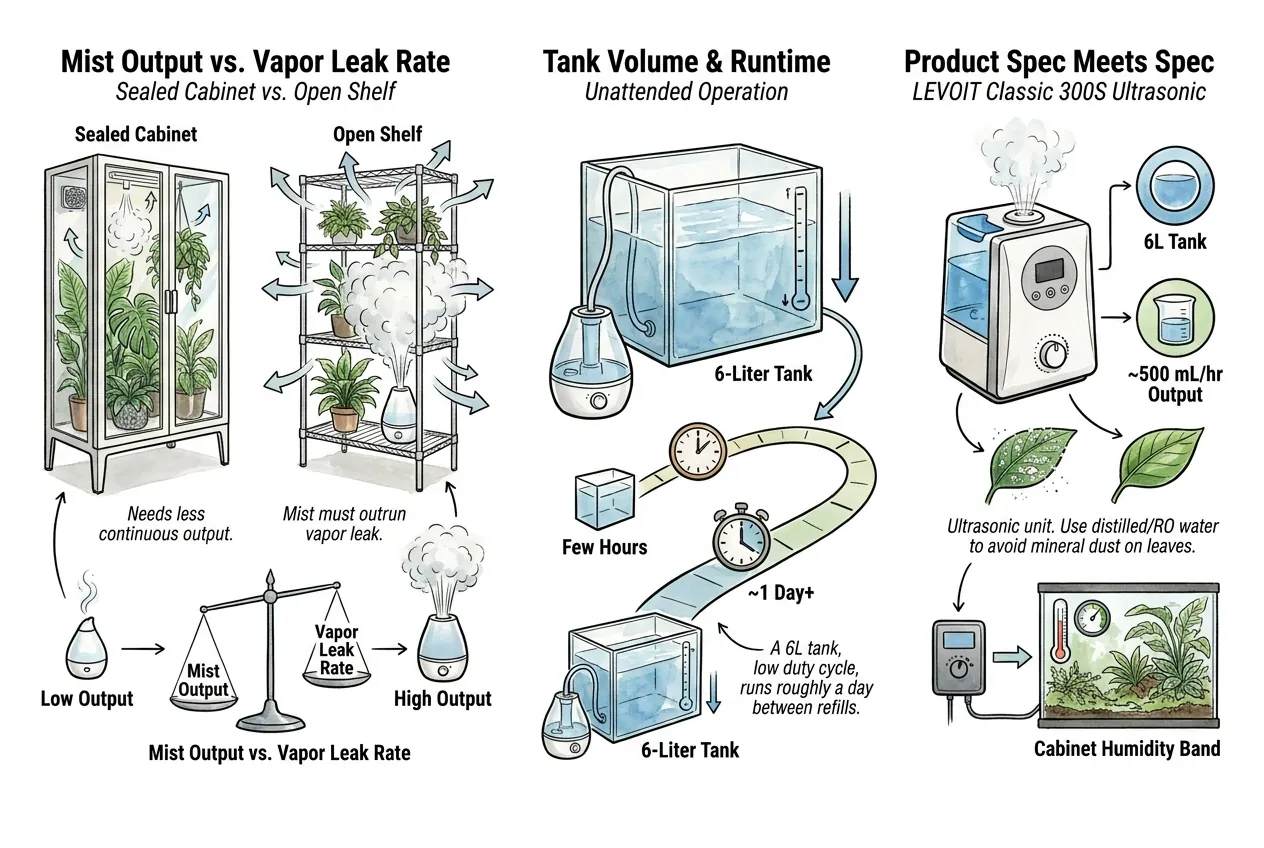

How do you size mist output and tank volume?

Mist output must outrun how fast your cabinet leaks vapor at the setpoint. A sealed cabinet needs far less continuous output than an open shelf.

Tank volume decides how long it runs unattended. A 6-liter tank at a low, controller-gated duty cycle can run roughly a day or more between refills.

What humidifier meets the spec?

This meets the spec because the output and tank are sized to lift and hold cabinet humidity into the band. The LEVOIT Classic 300S is an ultrasonic top-fill unit with a 6-liter tank, mist output up to roughly 500 mL/hr, and runtime up to roughly 60 hours on low.

Buy on Amazon (B09C24TYGQ) Use this when you want a few days between refills and quiet operation under about 30 decibels. Skip ultrasonic with tap water if you cannot tolerate white mineral dust on leaves, because the disc aerosolizes dissolved minerals. Use distilled or reverse-osmosis water, or wipe regularly.

One more caution applies to the onboard humidistat. Its built-in sensor is less placeable and less precise than a dedicated canopy sensor. Gate it with an external controller rather than trusting the internal reading for tight VPD work.

Which thermo-hygrometer lets you actually measure VPD?

Choose a digital sensor with stated accuracy and logging, placed at canopy height. You cannot control a VPD you never measured, and VPD needs both temperature and humidity from where the leaves sit.

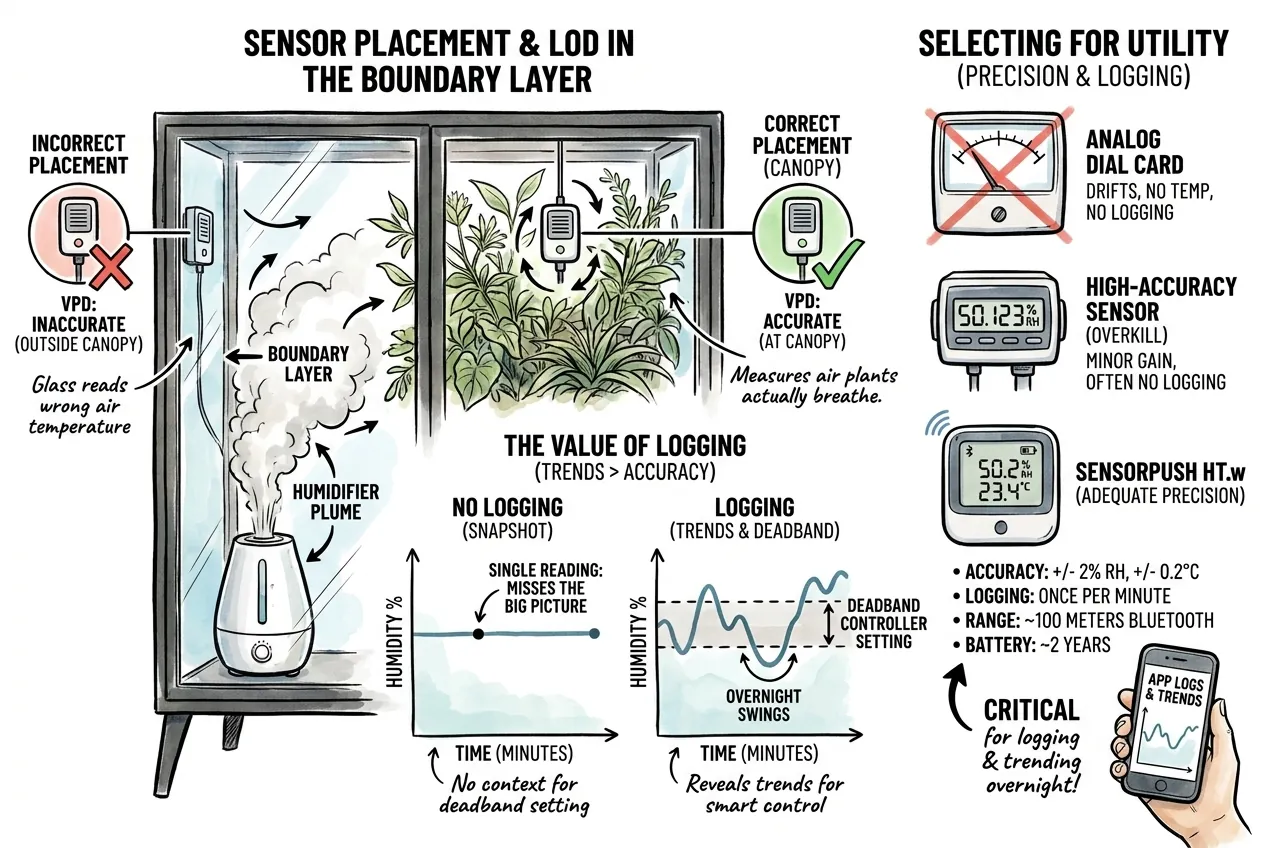

Why does placement and logging beat raw accuracy?

VPD at the canopy differs from VPD at the door because of the boundary layer and the humidifier plume. A sensor on the glass reads the wrong air.

Logging matters more than the last decimal of accuracy. Humidity swings overnight, and you need the trend to set the controller’s deadband sensibly.

A humidity accuracy near plus or minus 2 to 3 percent and temperature near plus or minus 0.2 to 0.5 degrees Celsius is enough to compute VPD usefully. Analog dial cards give no temperature and drift several percent, so they cannot anchor a VPD reading.

What precision sensor meets the spec?

For this setup the critical measurement is accurate canopy temperature and humidity that you can log and trend. The SensorPush HT.w reads to about plus or minus 0.2 degrees Celsius and plus or minus 2 percent humidity. It samples once per minute over roughly 100 meters of Bluetooth range, with about two years of battery life.

Buy on Amazon (B0F1ZL9H6C) Use this when you want to log overnight and set the controller from real trend data. Skip it if you only want a glance-able number and never log, since the base unit is Bluetooth-only and needs an optional gateway for away-from-home monitoring.

What is the budget WiFi alternative?

When you want phone alerts and a lower price, a WiFi sensor fills the role. The Govee H5179 reads to about plus or minus 0.3 degrees Celsius and plus or minus 3 percent humidity, with WiFi plus Bluetooth, app alerts, and free data export.

Buy on Amazon (B0C7QMSMLD) Use this when you want a notification the moment humidity leaves the band. Skip it if your cabinet sits out of 2.4 GHz WiFi range, since it does not use 5 GHz and needs power nearby.

Which humidity controller closes the loop?

A relay controller with an adjustable setpoint and an adjustable deadband is what stabilizes VPD. It switches the humidifier on below the setpoint and off above it, and the deadband stops rapid on-off chatter.

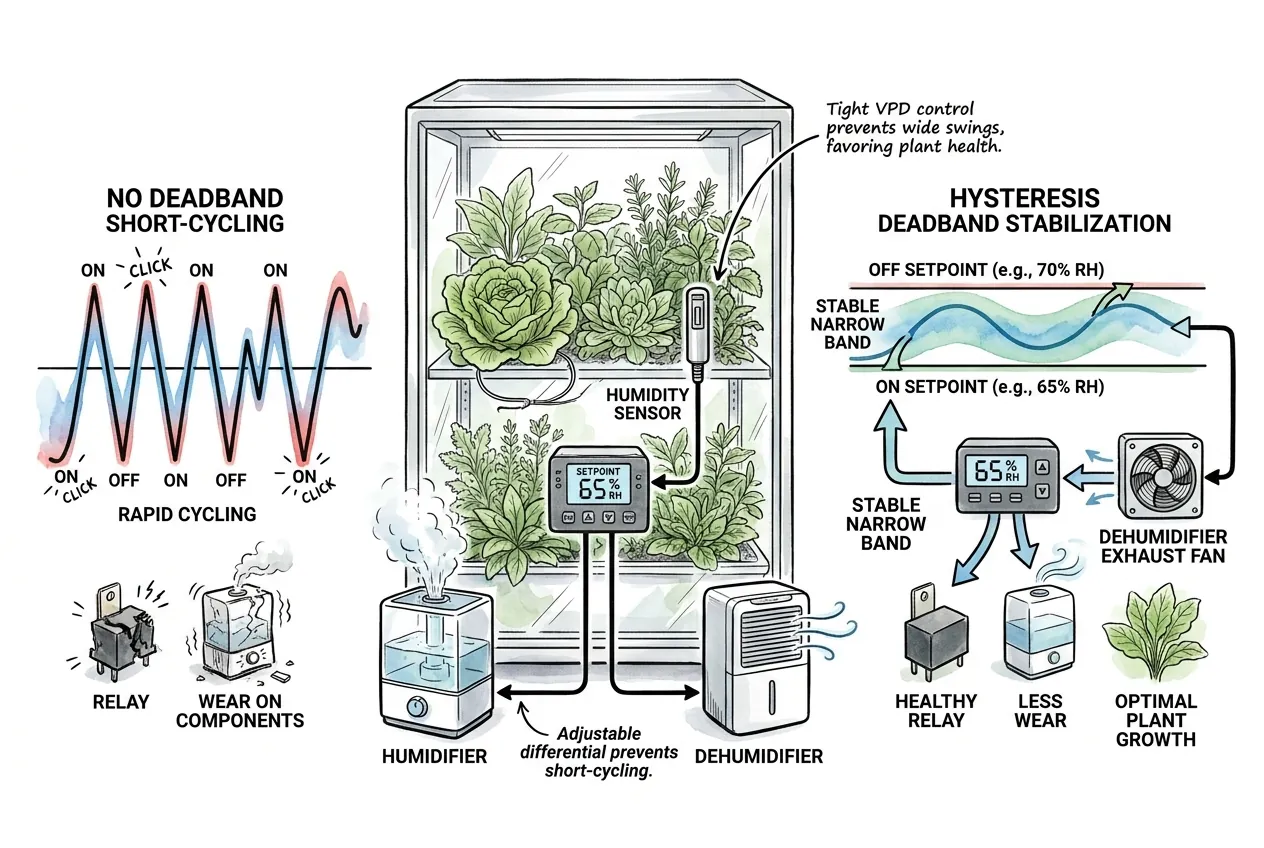

Why does hysteresis stabilize the band?

A setpoint with no deadband short-cycles, clicking on and off every few seconds and wearing both relay and humidifier. A deadband lets humidity ride inside a narrow band instead.

That narrow-band behavior is exactly what the lettuce study rewarded, where tight VPD beat wide swings. A dual-stage controller can also drive a dehumidifier or exhaust on the second outlet to hold the band from both sides.

What controller meets the spec?

This meets the spec because it offers a full-range setpoint and an adjustable differential. The Inkbird IHC-200 controls from 5 to 99 percent humidity at about plus or minus 3 percent accuracy. Its humidification differential is adjustable from 1 to 20 percent, with a calibration offset of plus or minus 10 percent.

Buy on Amazon (B07XGQ7Q53) Use this to plug the humidifier into the humidify outlet and set a band, such as on at 65 percent and off at 70 percent. Widen the differential if it short-cycles.

Skip relying on its onboard probe for your VPD reading, because that probe is only plus or minus 3 percent and sits where you mount the box. Keep a separate canopy sensor and apply the calibration offset.

How do you set up the cabinet in the right order?

Commission the system from measurement outward, so each tool is tuned to real data. The sequence below prevents the common mistake of buying gear before you know how your cabinet behaves.

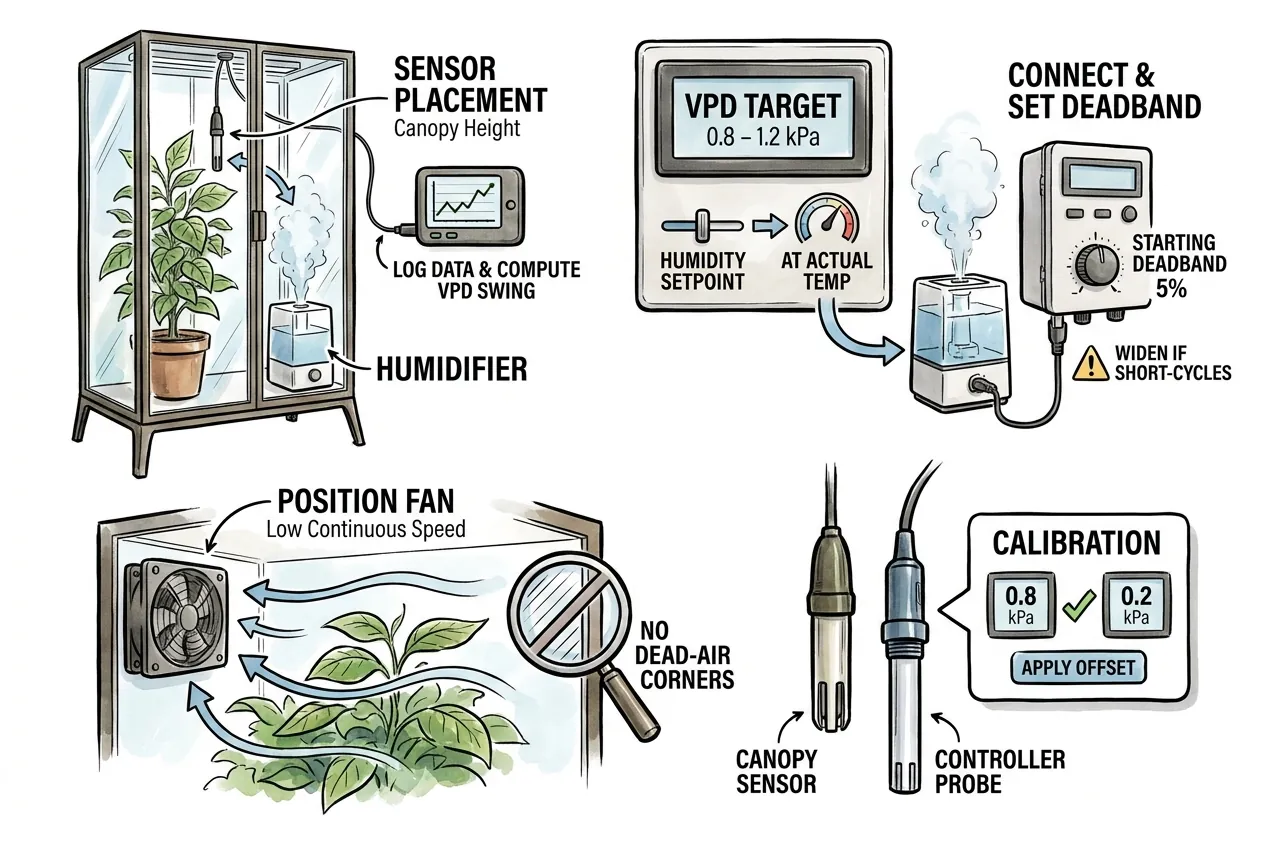

What is the commissioning sequence?

First, place the sensor at canopy height, away from the humidifier plume and the glass. Log temperature and humidity for a day or two and compute VPD to learn the overnight swing.

Second, pick a VPD target near 0.8 to 1.2 kPa and translate it to a humidity setpoint at your cabinet’s actual temperature. Third, plug the humidifier into the controller and set the band with a starting deadband around 5 percent, widening it if the unit short-cycles.

Fourth, position the fan to move air across the canopy on a low continuous speed and confirm no dead-air corners. Finally, re-check the canopy sensor against the controller probe and apply the controller’s calibration offset.

How does this connect to a broader cabinet build?

This chooser handles the humidity and airflow loop, which is one layer of a full enclosed setup. Light, substrate, and ventilation interact with it.

For the wider build context including airflow and grow lights, see our mini greenhouse indoor guide. Treat VPD control as the layer that ties temperature, humidity, and air movement together.

Who should not buy each class of product?

Not every grower needs every tool, and some upgrades are wasted on a small build. Match the purchase to your cabinet and your tolerance for fuss.

When should you skip the premium options?

Skip a premium oscillating app-controlled fan if you run one small cabinet, since a basic high-airflow clip fan moves the same air for less. Do not skip a fan entirely, because stagnant high-humidity air is the main disease driver.

Skip a 6-liter humidifier if your cabinet is tiny and well sealed, since a smaller tank is less awkward to refill. Skip ultrasonic with tap water if mineral dust on leaves bothers you.

Skip the premium logging sensor if you never log and only want a glance number, but never trust an analog dial for VPD. Skip the controller only if your humidifier has a trustworthy built-in humidistat and you accept wider swings.

How do you maintain the system and spot failure modes?

Plan for cleaning and drift, because every tool here degrades in a predictable way. Light, regular maintenance prevents the failures that quietly push your cabinet out of band.

What are the failure modes and service intervals?

The humidifier scales on its ultrasonic disc and grows biofilm in the tank. Clean it roughly weekly to biweekly and descale with vinegar.

The fan loads up with dust and its bearings eventually wear, so wipe the blades periodically and expect multi-year life from a quality EC motor. Humidity sensors drift, so recalibrate against a known reference about once a year and replace the SensorPush battery roughly every two years.

The controller relay has a finite number of switching cycles. A wider deadband reduces switching and extends relay life, and relay chatter is the warning sign that your deadband is too tight.

What do buyers still ask about plant cabinet VPD gear?

These are the real objections buyers raise before assembling a kit. Each answer points back to the mechanism that settles it.

Can I skip the controller and run the humidifier on a timer?

A timer cannot react to humidity, so it overshoots at night and undershoots when the cabinet leaks. A controller with a deadband reacts to the actual reading.

That matters because VPD stability, not just the average, drives growth in the controlled-environment evidence. The controller is the highest-leverage upgrade once a sensor and fan are in place.

Is a cheap analog hygrometer dial good enough?

No. It gives no temperature, so you cannot compute VPD, and the cards drift several percent over time.

A digital sensor with stated accuracy is the floor for this whole approach. Without it, every other setting is a guess.

What is the minimum viable kit versus the full kit?

The minimum viable kit is an accurate sensor plus a fan, so you can measure VPD and circulate air. That alone prevents the worst stagnant-air problems.

The full kit adds a controller-gated humidifier to hold the band automatically overnight. Build up to it as your collection and your tolerance for manual tweaking demand.
