Master VPD in Plant Cabinets: Growth & Disease Guide

Master VPD in plant cabinets: why vapor pressure deficit beats humidity, species targets from aroids to cloud-forest plants, measuring leaf VPD, sealing, fans, propagation step-down, and automated control.

Patrick Ivern · 2026-04-12 · 20 min read

Key Takeaways

• VPD, not RH, is the metric that matters. The same humidity reading means very different drying pressure at 20°C versus 30°C; target roughly 0.8-1.2 kPa for most tropical aroids.
• Temperature drives VPD. A few degrees of grow-light heat nearly doubles the air’s drying force, so humidity has to be compensated on the light cycle, not set once and forgotten.
• Airflow is the disease shield. Perfect cabinet VPD means nothing if the leaf boundary layer is stagnant; run fans 24/7 in a diagonal pattern to kill the zero-VPD dead zones where Botrytis starts.
• Seal first, then humidify. EPDM weatherstripping is the highest-return upgrade; without it no humidifier wins against dry winter air leaking through door gaps.
• Match the target to the species and transition slowly. Anthurium warocqueanum wants 0.4-0.6 kPa, Phalaenopsis 0.8-1.2; move cuttings from a dome to a cabinet over 7-10 days so stomata can adapt.

What Is VPD and Why Does It Matter More Than Humidity?

VPD is the definitive measure of the ‘drying force’ that air exerts on a plant’s leaves. It matters more than relative humidity (RH) because RH is temperature-dependent — the same 75% RH means completely different things at 20°C vs. 30°C. VPD removes that ambiguity.

It expresses a single number in kilopascals (kPa) that tells you exactly how hard the air is pulling moisture out of your plant.

Consider the math. At 20°C and 75% RH, VPD is 0.58 kPa.

At 30°C and the same 75% RH, VPD is 1.06 kPa — nearly double the drying force. A hobbyist watching only the humidity percentage would see an unchanged number while their plant silently entered transpiration stress.

The target for most tropical aroids in a cabinet setting is 0.8–1.2 kPa during active vegetative growth. Below 0.4 kPa, the air is too saturated, transpiration stalls, nutrients stop moving, and fungal pathogens establish.

Above 1.5 kPa, stomata close to protect the plant from dehydration, halting photosynthesis and growth entirely.

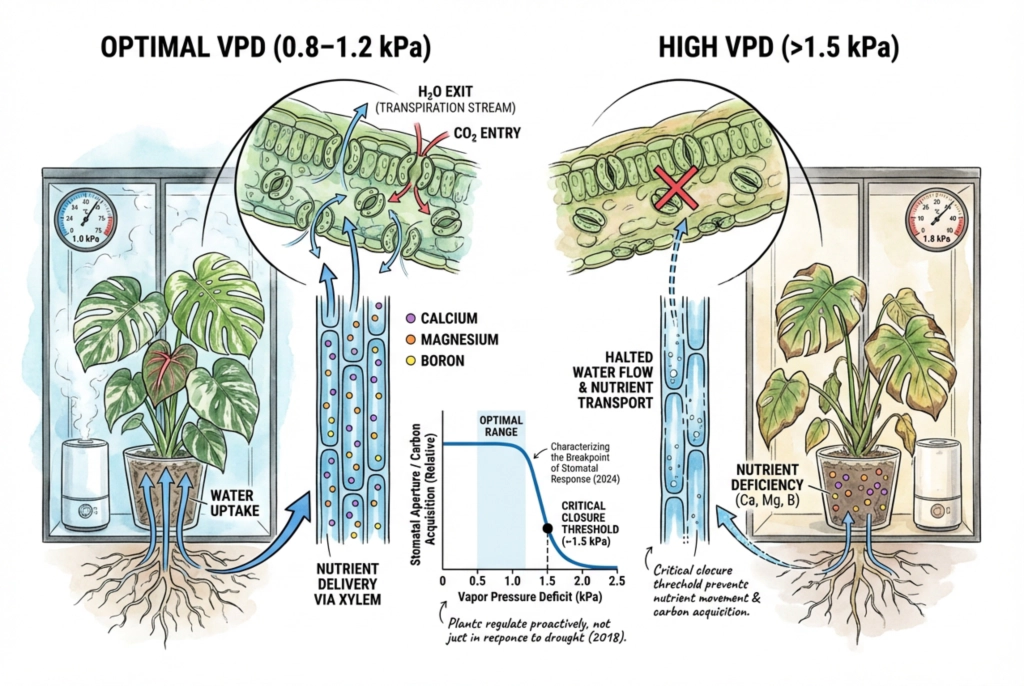

Why Does the Plant Care About VPD?

The plant’s stomata — microscopic pores on the leaf surface — open and close in direct response to VPD. When VPD is in the optimal range (0.8–1.2 kPa), stomata stay open.

This allows carbon dioxide to enter while water vapor exits in a controlled, productive transpiration stream.

That stream is not just about cooling. It is the delivery vehicle for Calcium, Magnesium, and Boron — nutrients that can only move from root to leaf tip via the continuous flow of water through the xylem.

A 2024 study published in Plant Physiology (Characterizing the Breakpoint of Stomatal Response to VPD) identified specific atmospheric breakpoints where plant carbon acquisition begins to crash relative to VPD,

with the critical closure threshold at approximately 1.5 kPa for most tropical species.

A 2018 Frontiers in Plant Science paper demonstrated that plants regulate stomatal aperture ‘in anticipation of drought, not just in response to it,’ making proactive VPD management a growth strategy rather than emergency rescue.

Research on greenhouse-grown ornamentals found that plants kept at a constant 0.8 kPa VPD showed a substantial increase in leaf area over 90 days compared to those kept in fluctuating home conditions (0.8–2.5 kPa).

Optimizing VPD can meaningfully increase biomass production by keeping stomatal conductance high.

How Do You Measure VPD Accurately in a Plant Cabinet?

Accurate VPD measurement requires two data points: temperature and relative humidity.

But precision matters — a 5% error in RH at 80°F can shift the perceived VPD by 0.15 kPa, moving a plant from the ‘safe zone’ into stress territory without any visible change in the sensor reading.

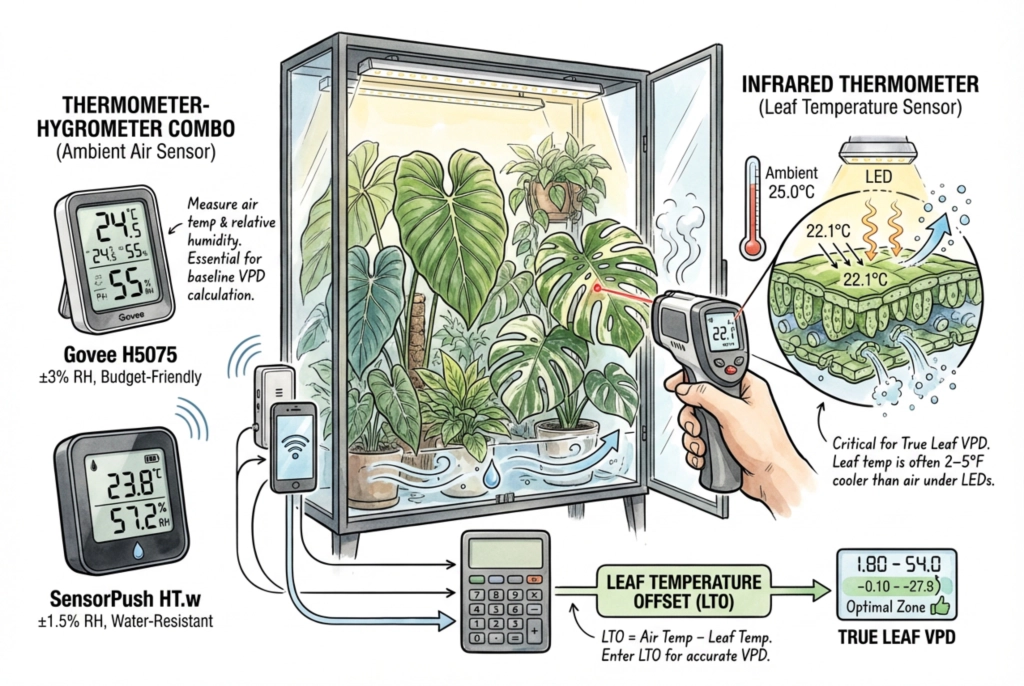

What Equipment Do You Need to Measure VPD?

Use at least one quality thermometer-hygrometer combo with a maximum accuracy of ±2% RH.

Budget setups can use the Govee H5075 (±3% RH), but serious collectors should invest in the SensorPush HT.w (±1.5% RH, water-resistant for high-humidity environments).

The single most common measurement error in VPD management is using air temperature instead of leaf temperature.

Under modern LED lighting, leaf temperatures run 2–5°F cooler than the ambient air. The saturation vapor pressure inside the leaf is governed by leaf temperature, not air temperature.

Calculating VPD from air temperature consistently overestimates the drying force the plant actually experiences.

Use an infrared thermometer to measure your leaf canopy temperature. Subtract the canopy temperature from the air temperature to find your ‘Leaf Temperature Offset’ (LTO).

Enter this offset into a VPD calculator or smart controller to get the true Leaf VPD your plants experience.

What Are the VPD Targets for Different Rare Plant Species?

VPD targets vary significantly by species origin. Plants from lowland tropical rainforests tolerate and often prefer 0.8–1.2 kPa.

Cloud forest species require 0.2–0.5 kPa. Knowing the origin of your plant is the starting point for all VPD calibration.

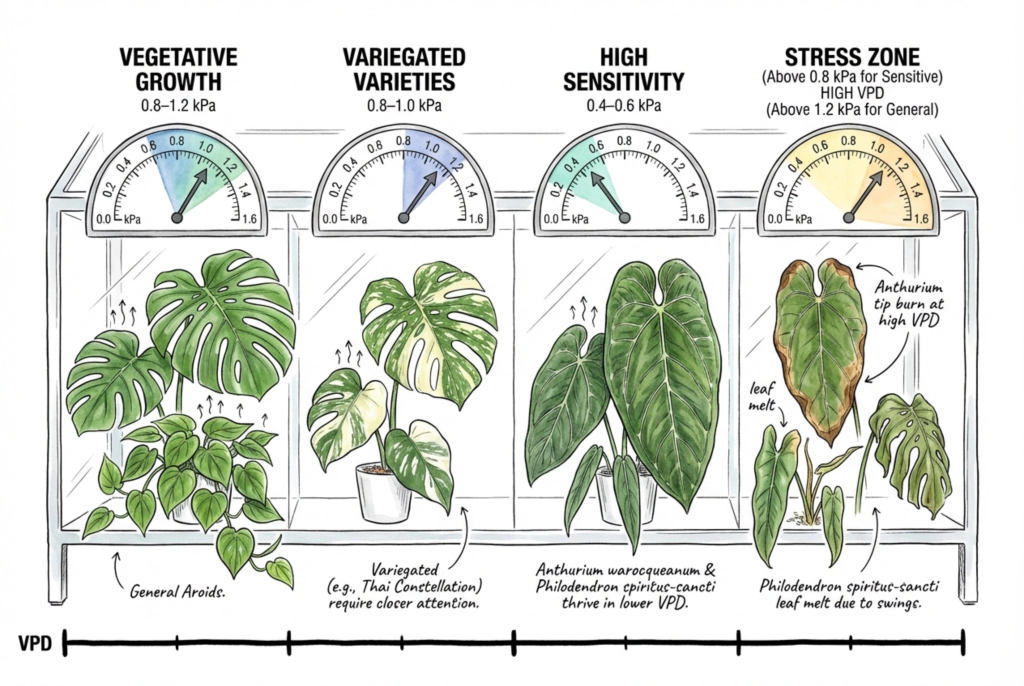

What VPD Do Aroids (Monstera, Philodendron, Anthurium) Need?

Most lowland tropical aroids are comfortable at 0.8–1.2 kPa during vegetative growth.

Variegated varieties require closer attention: non-green tissues are less efficient at photosynthesis and cannot actively maintain turgor pressure during high-VPD stress.

Target 0.8–1.0 kPa for variegated specimens (Monstera Thai Constellation, Albo-Variegata).

High-sensitivity species like Anthurium warocqueanum require VPD as low as 0.4–0.6 kPa. When VPD exceeds 0.8 kPa, the large velvety leaves develop tip burn — localized dehydration at the leaf margins where calcium supply cannot keep up with evaporative demand.

Philodendron spiritus-sancti, one of the rarest plants in the world, thrives at a stable 0.6–0.8 kPa and is particularly sensitive to rapid VPD swings that cause leaf melt in newly emergent foliage.

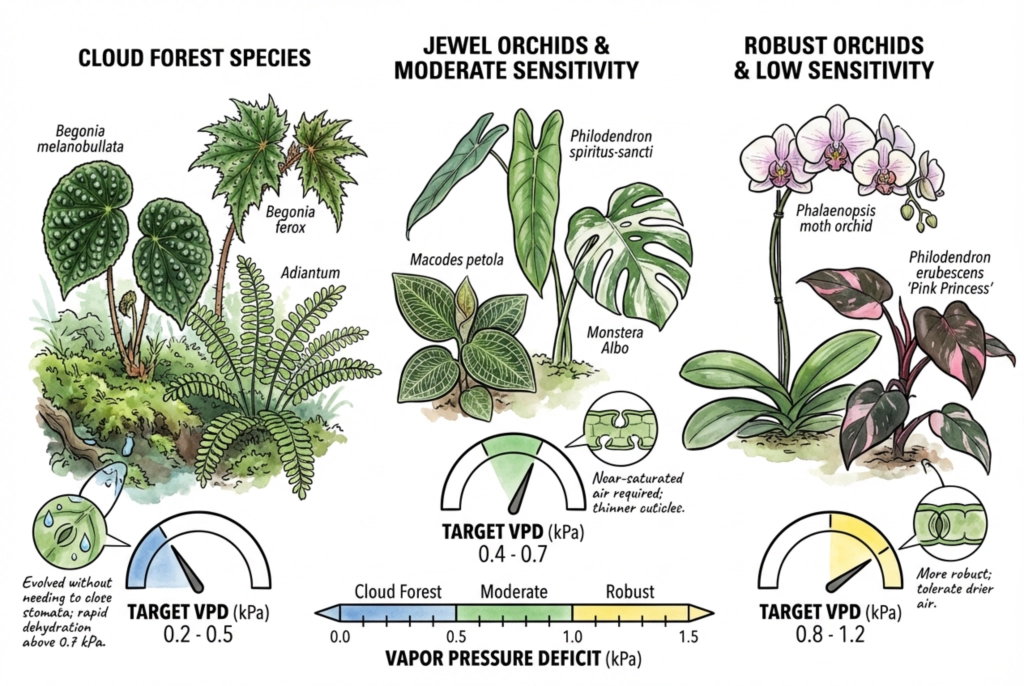

What VPD Do Orchids and Cloud Forest Species Require?

Jewel orchids (Macodes petola) live on the forest floor in near-saturated air, lacking the thick cuticles that protect epiphytic orchids.

They require 0.5–0.7 kPa. Phalaenopsis are more robust and tolerate 0.8–1.2 kPa.

High-altitude cloud forest species — Begonia melanobullata, Begonia ferox, many ferns — require 0.2–0.5 kPa.

These species have evolved without the need to close stomata; exposing them to VPD above 0.7 kPa causes rapid dehydration even when the soil is wet.

How Does Temperature Drive VPD in Your Cabinet?

Temperature is the primary engine of VPD change, not humidity. A 5°C temperature rise — the typical result of turning on grow lights — nearly doubles the air’s moisture-carrying capacity.

If humidity is not actively compensated, VPD spikes from the safe zone into the danger zone within minutes of lights turning on.

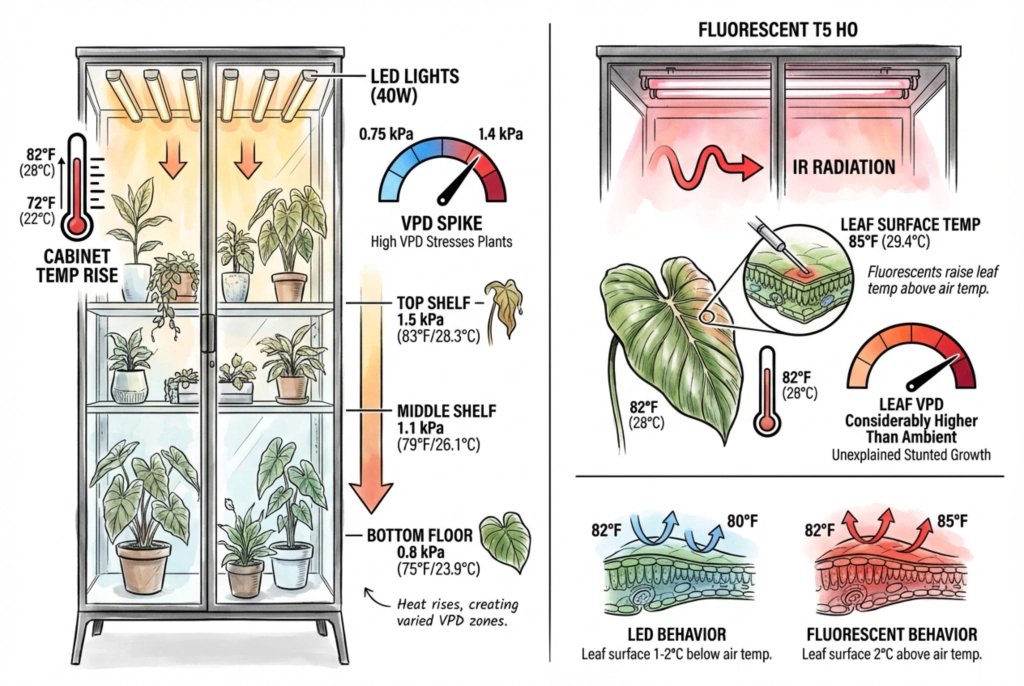

How Much Heat Do Grow Lights Add to a Cabinet?

A standard 4-bar Barrina T5 LED setup (40W) raises internal temperatures by 7–9°F (4–5°C) in a Milsbo Tall over a 12-hour light cycle.

Without any humidity compensation, a cabinet at 0.75 kPa at 72°F will spike to 1.4 kPa when grow lights heat the air to 82°F.

This is the most common cause of unexplained stunted growth in cabinet collections: the VPD is fine at lights-off and dangerously high for 12 hours every day during lights-on.

Fluorescent T5 HO lights are significantly worse — they emit infrared radiation directly onto plant leaves, raising leaf surface temperature 2°C above air temperature rather than the 1–2°C below that LEDs produce.

This causes leaf surface VPD to be considerably higher than the ambient reading suggests.

Thermal stratification compounds the problem. In a Milsbo Tall without active fans, temperature differentials can exceed 4°C (7.2°F) between the top shelf and the bottom floor.

A plant on the top shelf may experience 1.5 kPa (stressed) while one at the bottom sits in 0.5 kPa (prone to rot) — within the same cabinet.

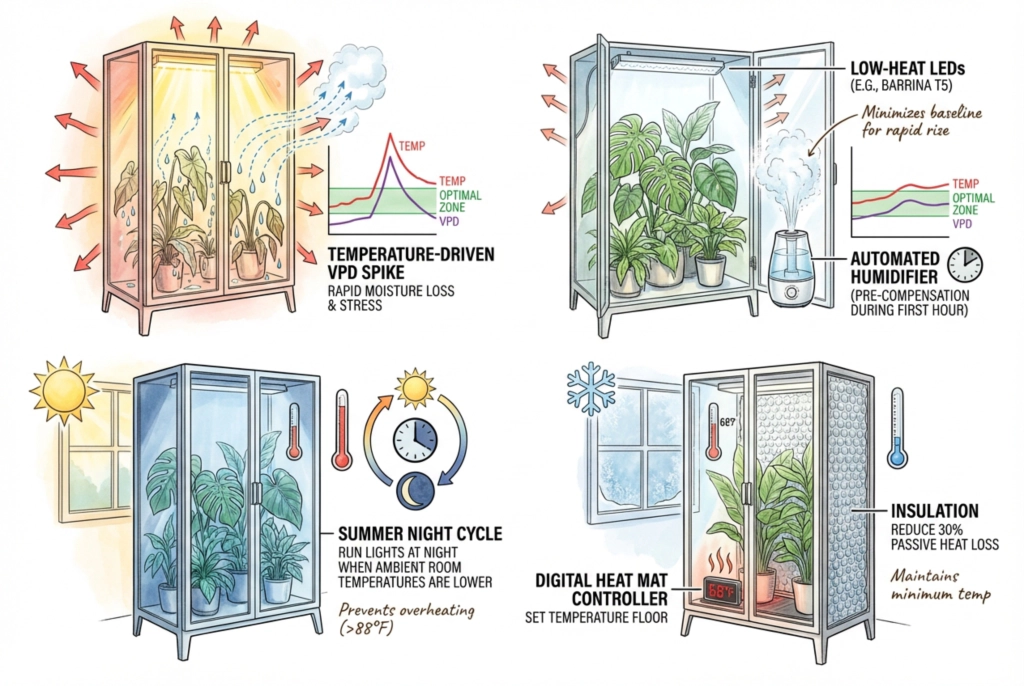

How Do You Fix Temperature-Driven VPD Spikes?

The solution is two-part. First, use low-heat LEDs; Barrina T5 strips are the gold standard for IKEA cabinet builds and keep the baseline heat load low.

Second, automate your humidifier to pre-compensate during the first hour of the light cycle, when temperature rise is fastest and VPD spikes are sharpest.

For summer overheating (cabinet temperatures exceeding 88°F), flip the light cycle to run lights at night when ambient room temperatures are naturally lower.

In cold northern winters, use a digital heat mat controller (BN-LINK) to set a temperature floor of 68°F, and insulate the cabinet back panels with bubble wrap to reduce 30% of passive heat loss.

How Do You Control Humidity to Hit Your VPD Target?

Humidity control in a small cabinet is a combination of sealing, passive moisture sources, and active humidification. Sealing is always the first step — it is the most cost-effective intervention and dramatically reduces humidifier run time.

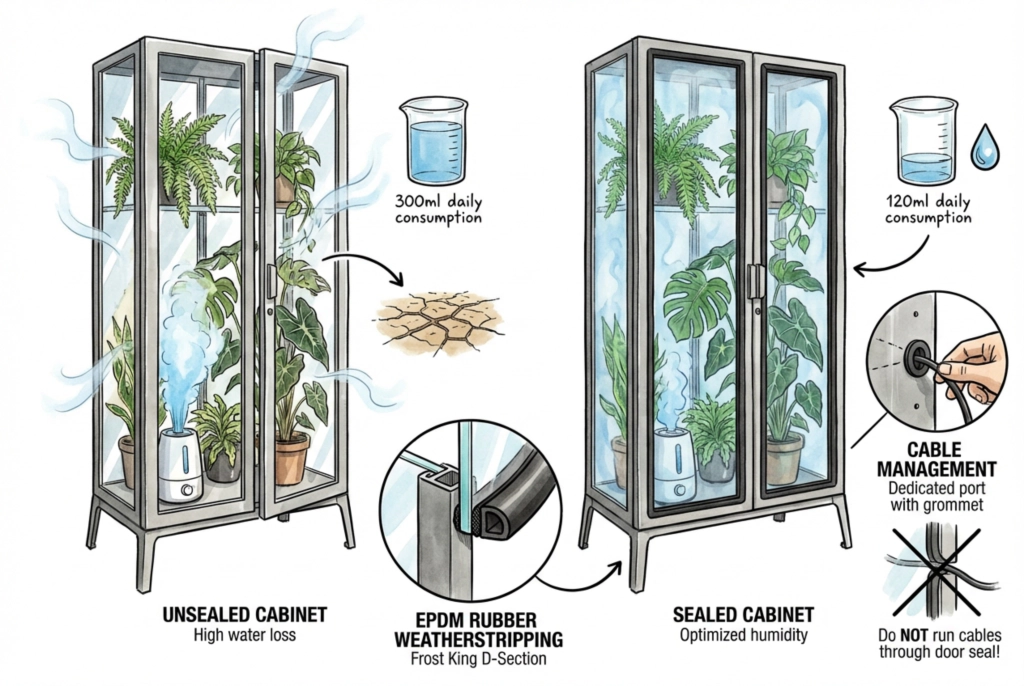

What Is the Best Way to Seal a Plant Cabinet?

Apply EPDM rubber weatherstripping (Frost King D-Section) to all door perimeters before investing in any active equipment.

Without sealing, a Milsbo in a dry winter home (20% ambient RH) loses moisture through the 2–4mm door gaps so rapidly that the humidifier cannot maintain targets even at maximum output.

After sealing, daily humidifier water consumption typically drops from 300ml to 120ml.

Never run cables through the door seal — this creates a permanent gap. Drill a dedicated port and seal with a rubber grommet.

The cable shortcut is one of the most common reasons well-sealed cabinets still fail to maintain humidity.

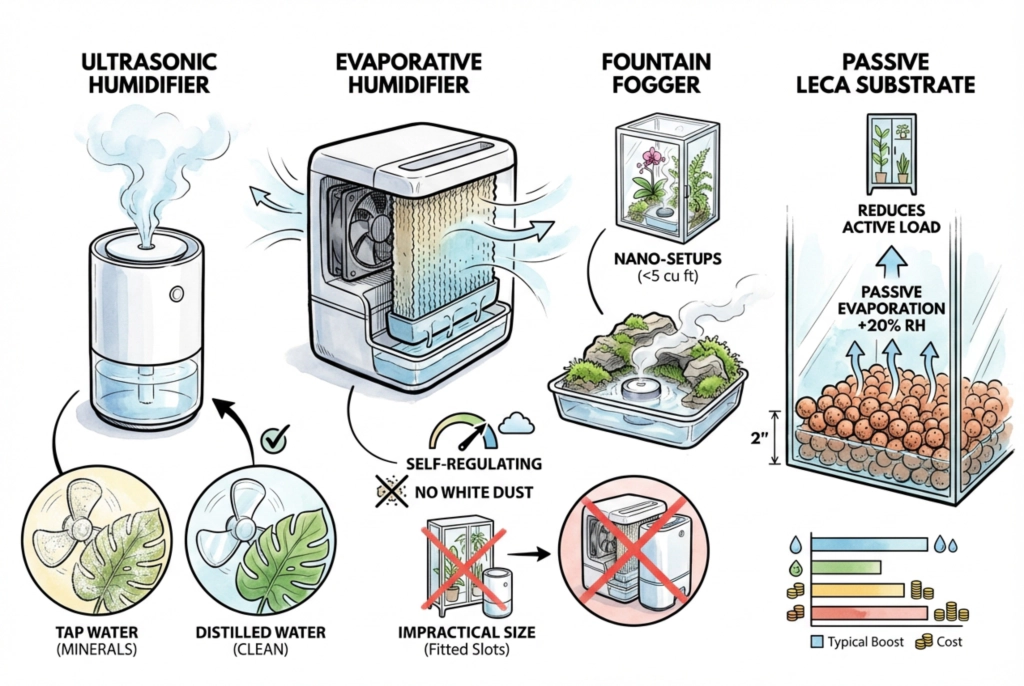

What Humidifier Should You Use in a Small Cabinet?

Ultrasonic humidifiers like the Levoit Classic 300S are the most practical for small cabinets because of their compact size and high output.

The non-negotiable rule: use distilled or RO water exclusively. Tap water atomizes mineral particles into the air, coating glass panels and fan blades with white mineral deposits within 2–4 weeks.

Evaporative humidifiers are self-regulating (evaporation slows automatically as humidity rises) and leave no white dust, but their size makes them impractical for most fitted IKEA slots.

Fountain foggers (small ultrasonic discs in a hidden reservoir) work well for nano-setups under 5 cubic feet where standard humidifiers are too large.

A Milsbo Tall (~380L / 13.4 cu ft) requires approximately 30–50ml of water vapor per hour to maintain 80% RH against a 40% ambient room humidity.

A 2-inch layer of wet LECA provides passive evaporation that raises ambient RH in a semi-sealed cabinet, significantly reducing active humidifier load.

How Does VPD Change Across Plant Growth Stages?

VPD requirements change fundamentally as a plant matures. An unrooted cutting at 1.0 kPa will wilt within hours.

A mature specimen at 0.3 kPa will stop growing for months. The correct VPD target is determined by the plant’s current root capacity — its ability to replace water lost through transpiration.

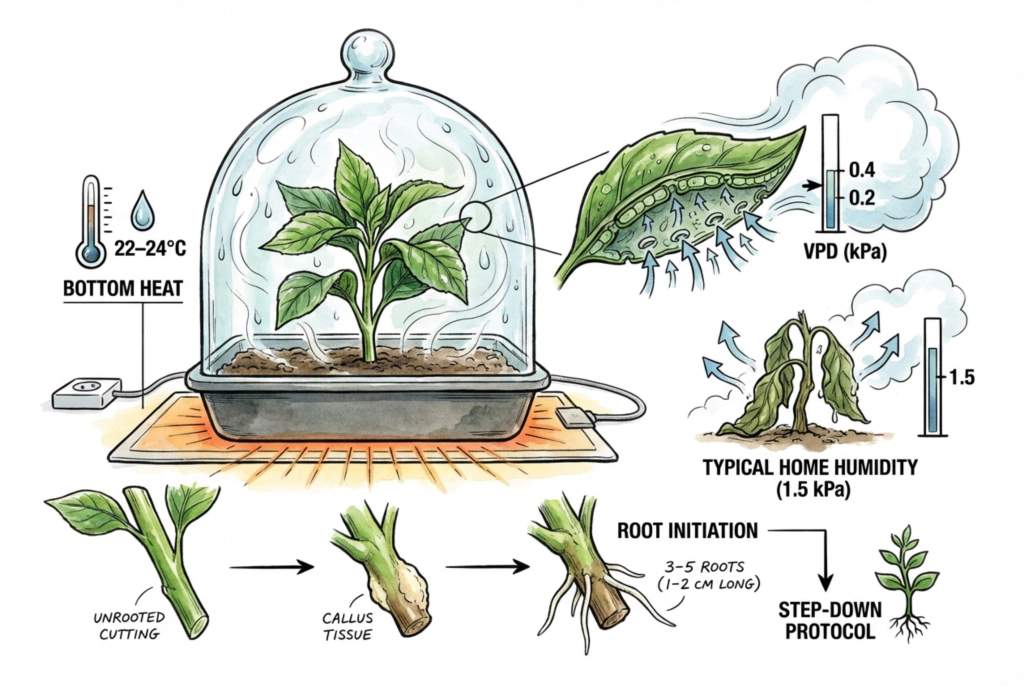

What VPD Do Unrooted Cuttings Need?

Unrooted cuttings require 0.2–0.4 kPa. At this near-saturated level, the pressure gradient between the leaf interior and the surrounding air is minimized.

The plant’s limited carbohydrate reserves redirect to root initiation rather than survival-level water conservation.

A cutting at 1.5 kPa (typical home humidity) loses water 5 times faster than at 0.3 kPa — it cannot develop callus tissue fast enough to survive.

Use a propagation dome or clear bag to achieve 0.2–0.4 kPa. Add bottom heat (22–24°C via heat mat) to stimulate root initiation while keeping aerial temperatures moderate. Once 3–5 roots are visible (1–2 cm long), begin the step-down protocol.

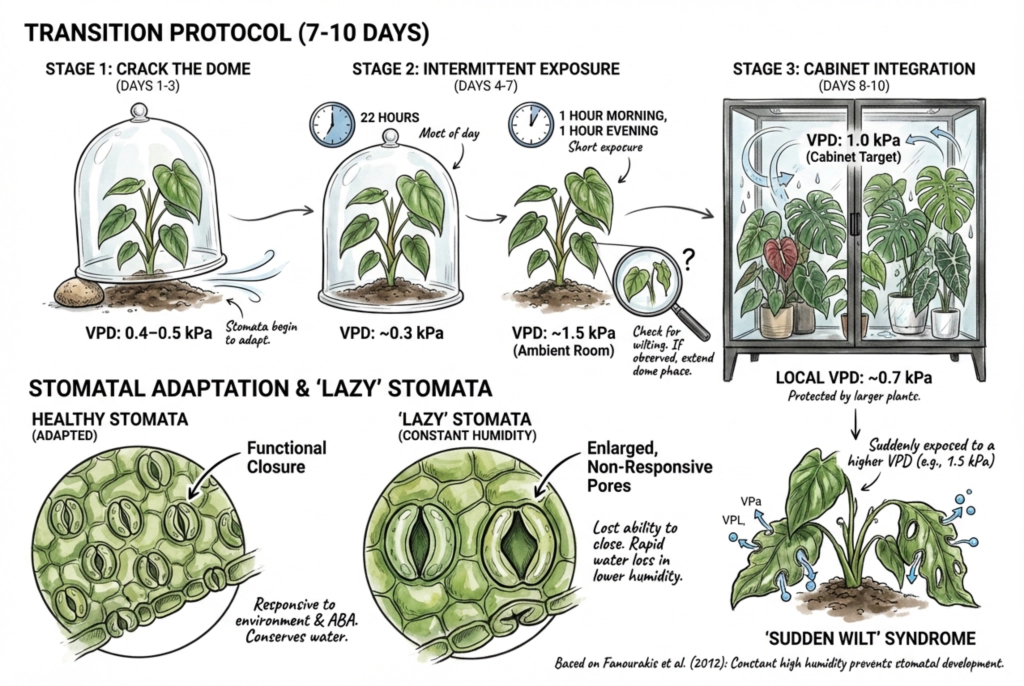

How Do You Transition a Plant from Propagation to Cabinet?

Moving a plant from a dome (0.3 kPa) to a cabinet (1.0 kPa) requires a 7–10 day step-down protocol. Stomatal habits form over days, not hours. A plant cannot adapt instantly to a 0.7 kPa atmospheric change.

Days 1–3: ‘Crack the dome.’ Use a small pebble to lift the dome edge 1/4 inch. VPD rises to approximately 0.4–0.5 kPa.

Days 4–7: Remove the dome for 1 hour morning and 1 hour evening. Watch for any wilting. If wilting occurs, extend the dome phase by 3 more days.

Days 8–10: Transfer to the cabinet. Place among larger, transpiring plants to benefit from the combined transpiration creating a lower local VPD of approximately 0.7 kPa.

A critical finding from Fanourakis et al. (2012): plants grown in constant high humidity develop ‘lazy’ stomata — enlarged pores that lose their ability to close in response to Abscisic Acid (ABA).

This explains the ‘sudden wilt’ syndrome that destroys nursery-purchased plants on their first day in a collector’s home (VPD ~1.5+ kPa). The stomata are physically incapable of closing, and the plant dehydrates rapidly regardless of watering.

How Does VPD Protect Against Disease and Root Rot?

VPD is the primary disease shield in a rare plant cabinet.

When VPD drops below 0.4 kPa for extended periods, three simultaneous disease conditions emerge: free surface water for spore germination, stalled calcium transport leading to weakened cell walls, and a stagnant boundary layer that concentrates pathogens at the leaf surface.

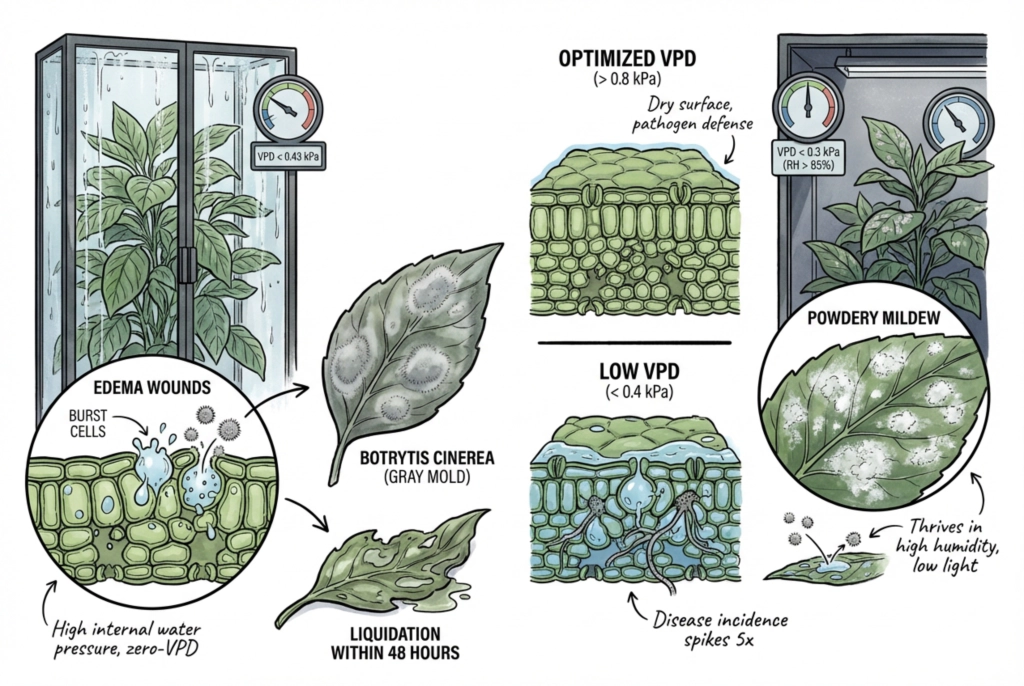

What Causes Botrytis and Mold in Plant Cabinets?

Botrytis cinerea (gray mold) germinates when VPD remains below 0.43 kPa for extended periods.

Disease incidence spikes 5x when VPD falls from 0.8 kPa to 0.4 kPa. Botrytis enters through weakened tissues — often the edema wounds created when a plant’s cells burst from the internal water pressure of zero-VPD conditions — and can liquidate a leaf within 48 hours of establishment.

Powdery mildew does not require free surface water to germinate, but thrives at humidity above 85% (VPD under 0.3 kPa) and low light.

Keeping VPD above 0.8 kPa reduces powdery mildew significantly by drying out the leaf surface and maintaining the plant’s own pathogen-fighting metabolic capacity.

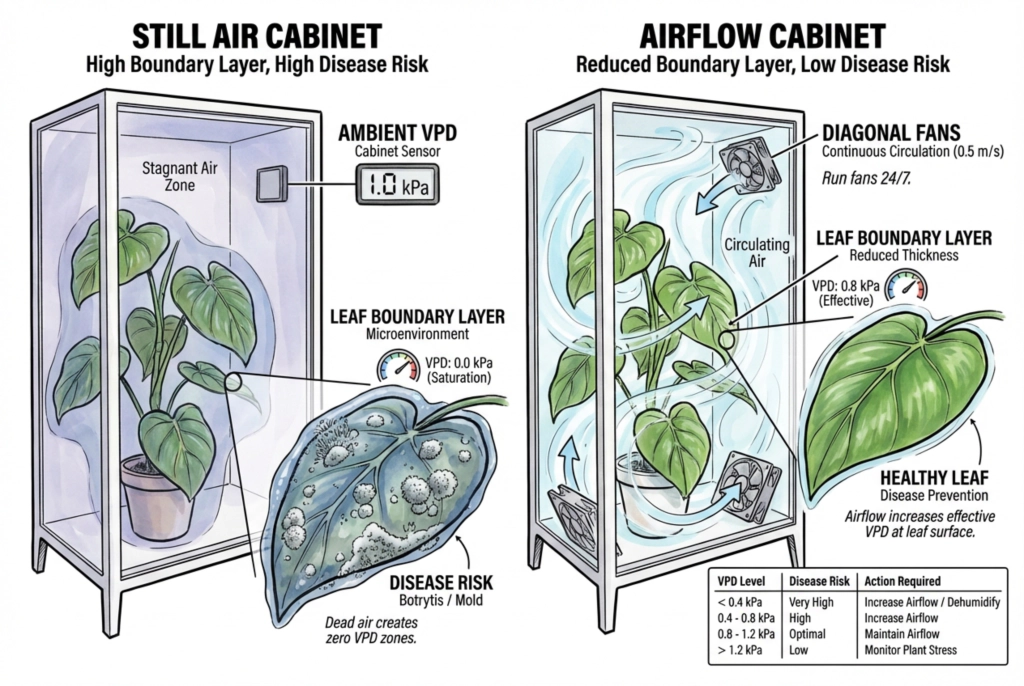

Why Is Airflow Critical for Disease Prevention?

Even a ‘perfect’ cabinet VPD of 1.0 kPa can contain zones of 0.0 kPa disease risk.

The leaf boundary layer — a thin film of still air surrounding each leaf — creates a microenvironment where the VPD is effectively zero regardless of the ambient cabinet reading.

Moving air at 0.5 meters per second reduces boundary layer resistance by 50%, doubling the effective VPD experienced at the leaf surface.

This explains why adding fans to a cabinet with ‘correct’ humidity readings can instantly resolve Botrytis outbreaks without any humidity changes.

The disease was not in the cabinet-level VPD. It was in the zero-VPD dead zones hiding in the still air between leaves.

Place fans diagonally: one at the top-rear pushing air down, one at the bottom-front directing air up. This creates a continuous circulatory vortex that eliminates cold spots and boundary layer stagnation. Run fans 24/7 — even at low speed overnight.

How Do You Build and Structure a Cabinet for Optimal VPD?

Cabinet structure determines the baseline around which all VPD control operates. Sealing, shelf material, fan placement, and glazing choices all directly affect thermal stability and humidity distribution.

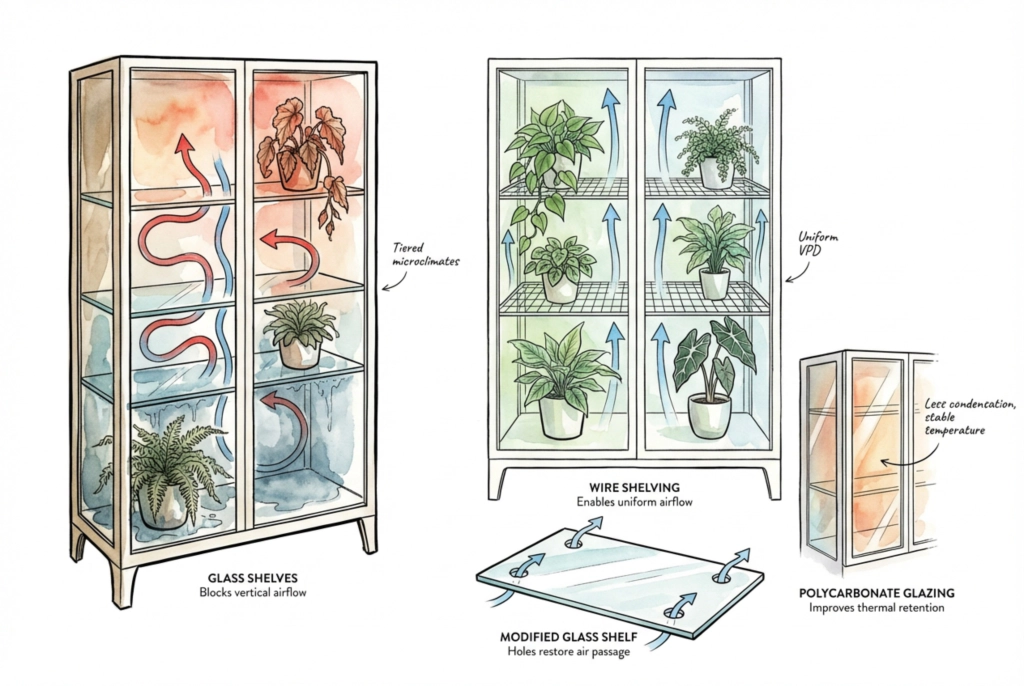

What Shelf Type Maximizes VPD Uniformity?

Glass shelves block vertical airflow, creating tiered microclimates within one cabinet — the top shelf is hot and dry (high VPD), the bottom is stagnant and wet (low VPD).

Wire shelving is the gold standard for VPD uniformity. If glass shelves are required for aesthetics, drill 4–6 one-inch holes toward each shelf edge to restore vertical air passage.

For the IKEA Milsbo Tall, replacing the middle glass shelf with wire or slotted acrylic reduces the top-to-bottom temperature differential from 7°F to 2°F. This directly improves VPD uniformity from a 0.6 kPa range across shelves to a 0.2 kPa range.

Polycarbonate or UV-transmitting acrylic glazing on the front panels improves thermal retention by up to 20% compared to standard glass. A warmer internal glass surface means less condensation and less convective heat loss — both of which destabilize VPD.

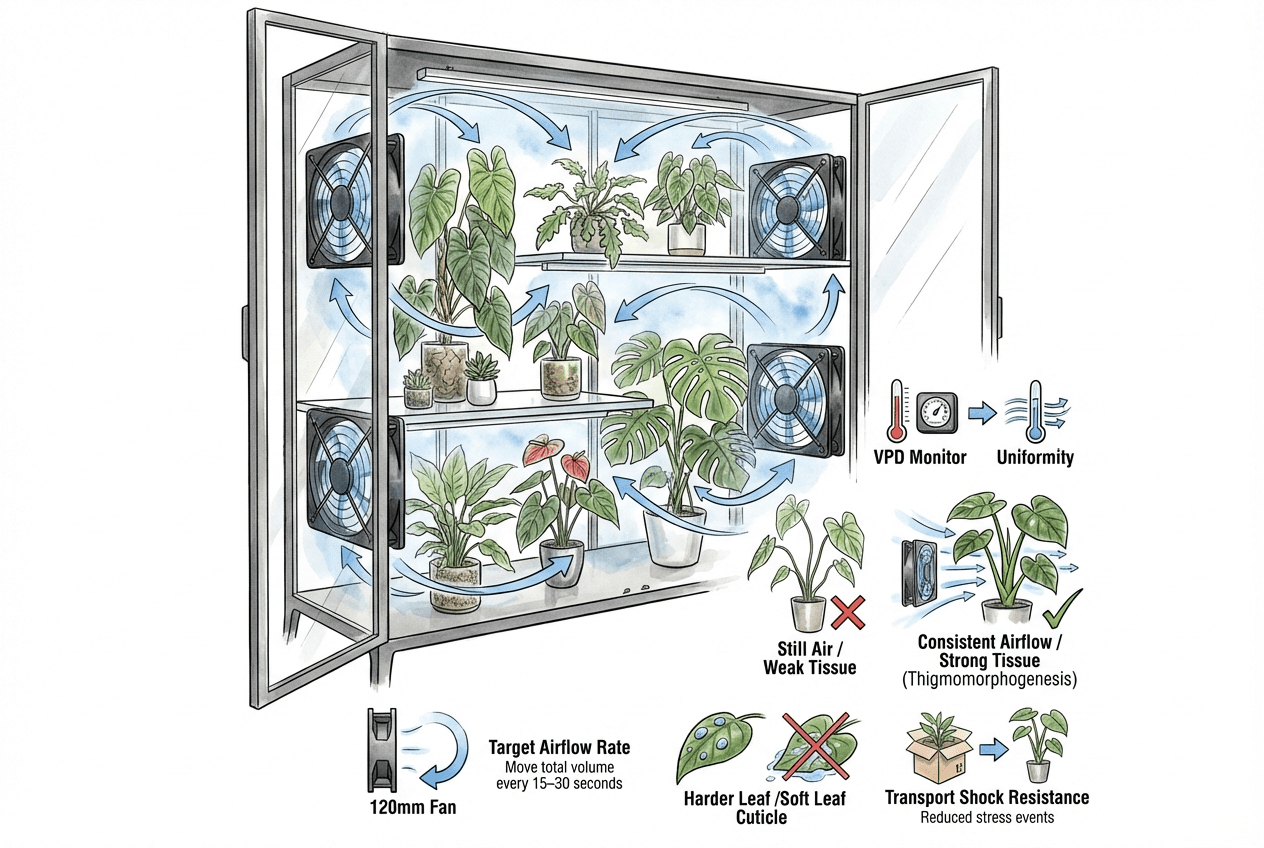

What Is the Optimal Fan Setup for a Milsbo Cabinet?

A Milsbo Tall needs at least four small fans for full VPD uniformity, two per side, placed diagonally; quiet units like the AC Infinity Multifan are ideal for running 24/7.

The target airflow rate: the total internal air volume should be moved every 15–30 seconds. For a 380L Milsbo Tall, this requires approximately 760–1520 L/min of combined fan output.

Thigmomorphogenesis is a bonus benefit: the gentle mechanical stress from continuous airflow triggers the biological strengthening of plant tissue, resulting in thicker petioles and harder leaf cuticles.

Plants grown with consistent airflow are significantly more resistant to VPD stress events and transport shock.

How Do You Automate VPD Control for a ‘Set It and Forget It’ Cabinet?

Automation takes VPD management from ‘constant vigilance’ to ‘check-in weekly.’ Automated VPD control reduces humidifier run-time by up to 30% compared to static RH targets by preventing over-humidification during warmer periods.

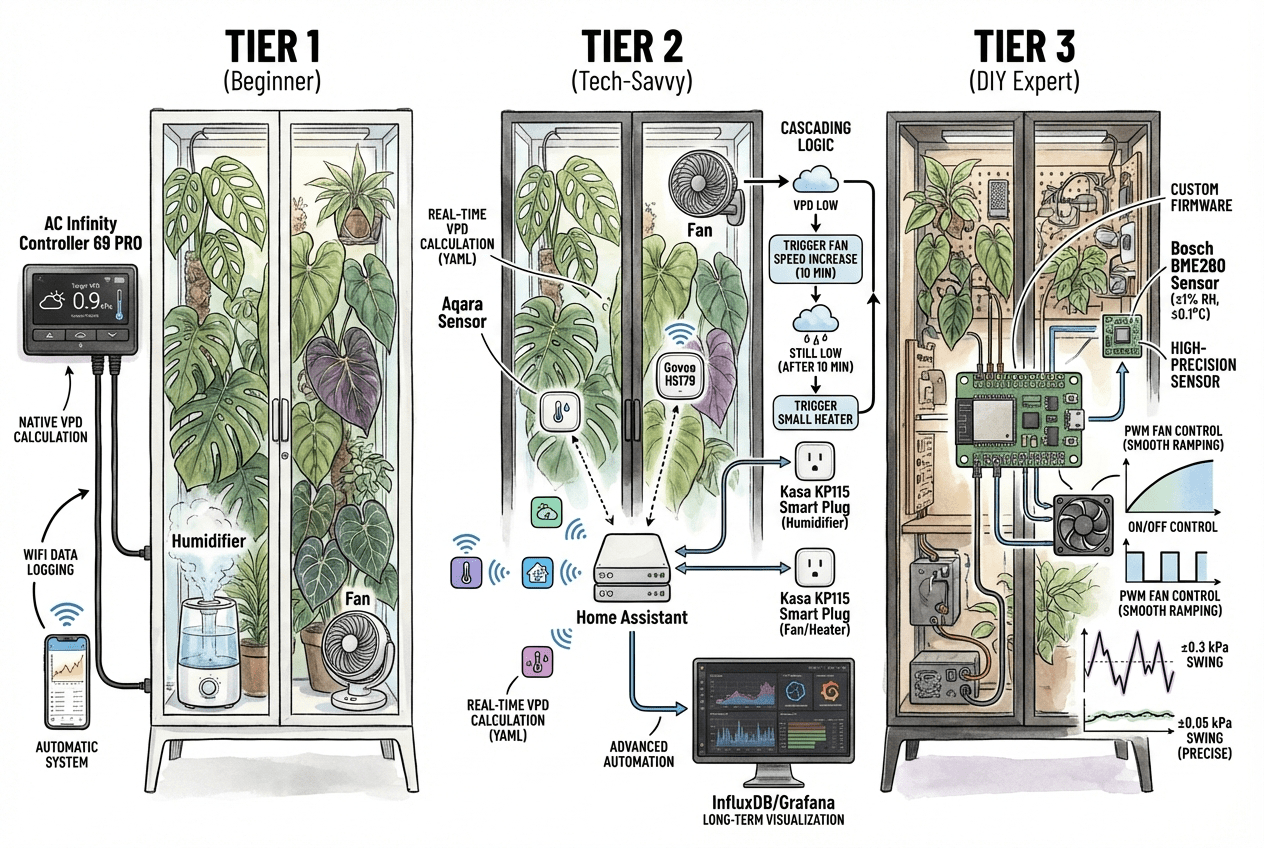

Which Controller Is Best for Cabinet VPD Automation?

Three tiers of automation suit different collector needs:

Tier 1 (Beginner)

The AC Infinity Controller 69 PRO provides native VPD calculation and WiFi data logging. Set a VPD target (e.g., 0.9 kPa), plug your humidifier and fan into the UIS outlets, and the system manages everything automatically. No wiring or programming required.

Tier 2 (Tech-Savvy)

Home Assistant with Zigbee sensors (Aqara, Govee H5179) and smart plugs (Kasa KP115) calculates VPD in real-time via YAML templates.

Enables ‘cascading logic’ automation — if VPD is too low, increase fan speed first; if still too low after 10 minutes, trigger a small heater. Integrates with InfluxDB/Grafana for long-term VPD trend visualization.

Tier 3 (DIY Expert)

ESP32 microcontroller with a Bosch BME280 sensor (±1% RH, ±0.1°C) running ESPHome firmware.

Enables PWM (Pulse Width Modulation) fan control for smooth ramping instead of harsh on/off switching. Reduces the peak-to-trough VPD swing from ±0.3 kPa (on/off control) to ±0.05 kPa — laboratory-grade microclimate stability.

The most critical automation problem to solve is ‘VPD hunting’ — the humidifier turns on, VPD overshoots low, the fan activates, VPD spikes high, and the cycle repeats every 2 minutes.

Fix this with hysteresis: set a 0.2 kPa buffer. Do not trigger the humidifier at 1.0 kPa; wait until 1.1 kPa.

Turn it off at 0.9 kPa. All quality controllers include this buffer setting.

How Do You Diagnose and Fix VPD Problems?

Plant symptoms tell you exactly whether VPD is too high or too low — if you know what to look for. Crispy leaves are not always dehydration.

Mushy tips are not always overwatering. Both extremes of VPD produce tip damage, but via completely different mechanisms.

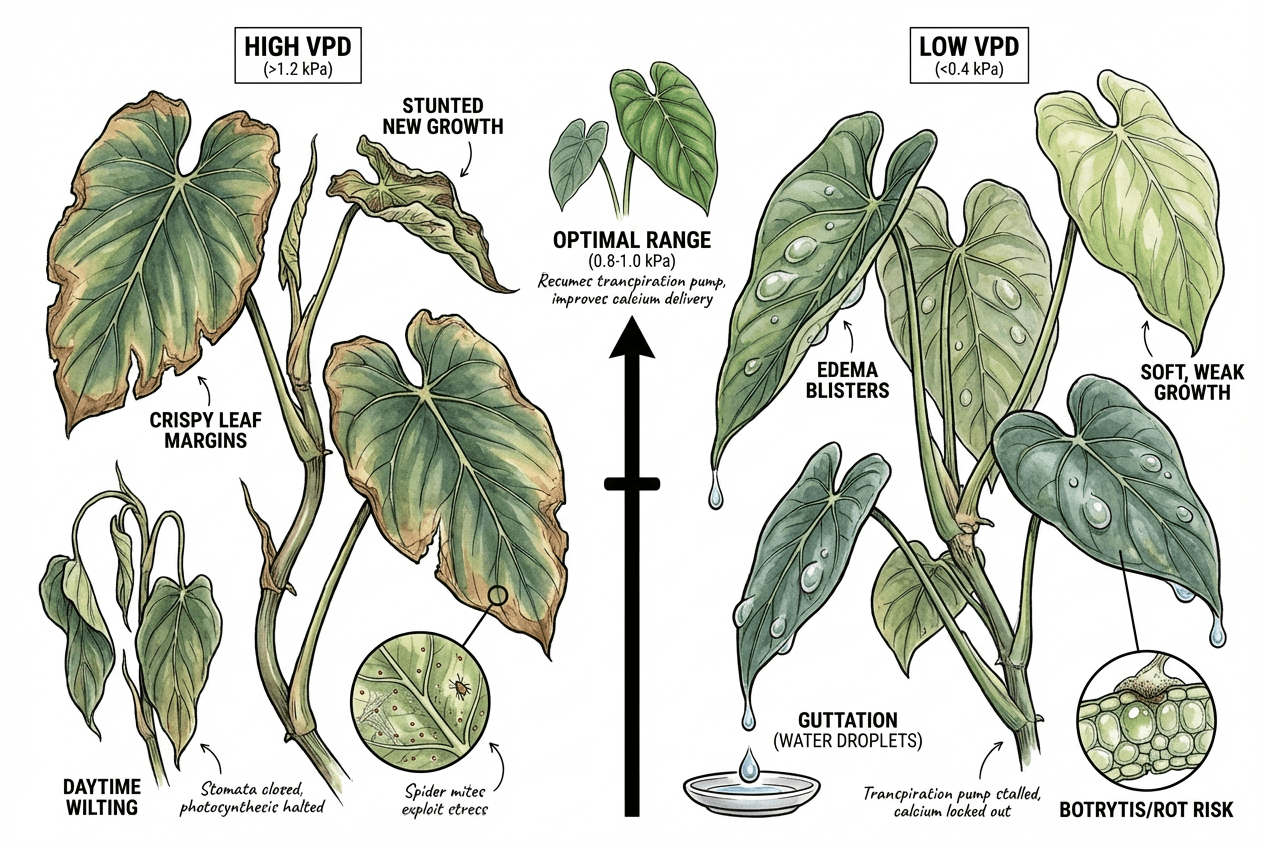

What Do Crispy Leaves vs. Mushy Tips Tell You About VPD?

High VPD (over 1.2 kPa): Crispy, brown, brittle leaf margins. New growth emerges stunted or fails to unfurl.

The plant wilts during the day despite adequate watering — stomata are closed and the plant is in survival mode, refusing to photosynthesize. Spider mites exploit this desiccated, stressed environment.

Low VPD (under 0.4 kPa): Edema water blisters on leaf undersides. Guttation (heavy water droplets at leaf tips in the morning).

New growth that emerges soft, oversized, and structurally weak due to calcium deficiency. Botrytis and root rot thrive in this stagnant, saturated environment.

A grower who adds extra calcium fertilizer to treat tip burn caused by Low VPD will see no improvement.

The issue is not calcium supply — it is calcium delivery. The transpiration stream that moves calcium from soil to leaf tip has stalled because VPD is too low.

Increasing fan speed and raising VPD to 0.8–1.0 kPa resumes the transpiration pump and resolves the deficiency within one growth cycle.

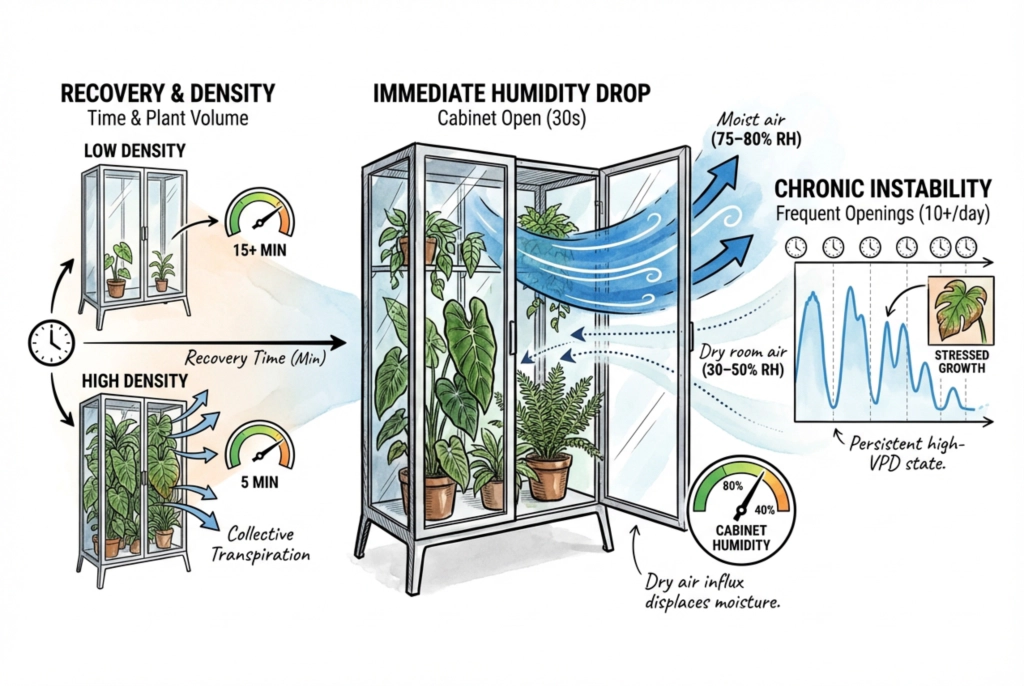

How Does Opening the Cabinet Door Disrupt VPD?

A single 30-second door opening in a home at 30–50% RH causes an immediate 40% humidity drop inside a cabinet at 75–80% RH. Recovery takes 5–15 minutes, at a rate of 2–3% RH per minute.

Cabinets opened 10+ times per day experience a near-constant state of VPD instability, producing the same stressed growth patterns as a persistently high-VPD environment.

Cabinets with higher plant density recover faster — collective transpiration from all specimens acts as a distributed humidifier. A fully stocked Milsbo recovers in 5 minutes; a sparsely populated one takes 15+ minutes.

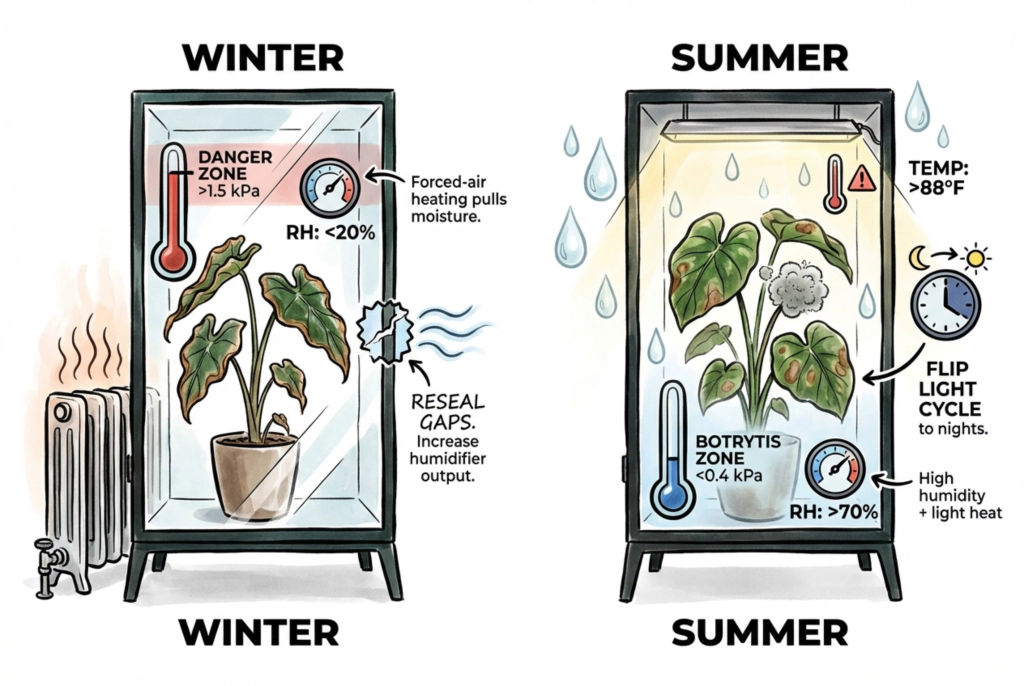

How Do Seasonal Temperature Changes Affect Cabinet VPD?

Winter

Forced-air heating drops room RH to 20% or lower, creating a strong diffusion gradient that pulls moisture from the cabinet through any unsealed gap.

VPD climbs from the safe zone into the danger zone gradually, often over 2–3 weeks, causing plants to first stop growing and then show leaf damage before the problem is identified.

Inspect and reseal all weatherstripping before heating season. Increase humidifier output by 20–30%.

Summer

High ambient humidity combined with light-cycle heat can drive cabinet VPD below 0.4 kPa, creating Botrytis conditions.

Flip the light cycle to nights. Monitor maximum internal temperature — if it exceeds 88°F, this is a critical threshold for most tropical aroids.
