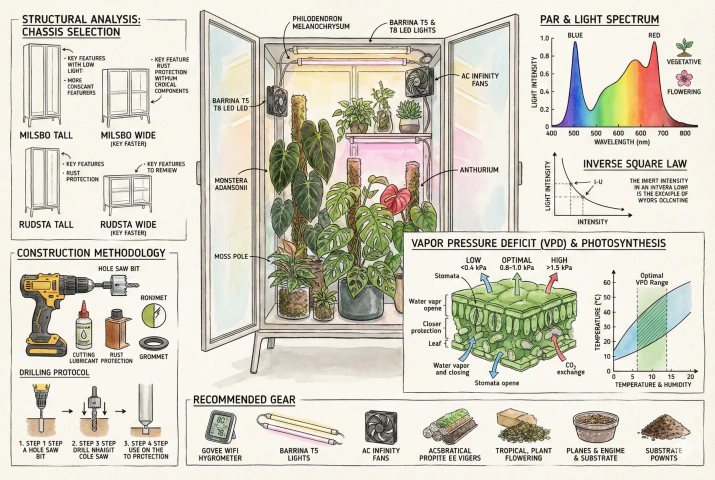

IKEA Greenhouse Cabinet: Milsbo & Rudsta Build Guide

How to convert an IKEA Milsbo or Rudsta cabinet into a greenhouse vivarium: managing VPD, choosing the chassis, drilling safely, full-spectrum lighting, airflow, sealing, and monitoring.

Patrick Ivern · 2025-12-18 · 12 min read

Key Takeaways

• Stop chasing a humidity number — manage VPD (vapor pressure deficit). In a sealed cabinet, light heat makes the air “thirstier,” so the real target for tropical aroids is ~0.8–1.0 kPa; too high closes stomata, too low halts the transpiration that carries calcium to new leaves.
• Pick the chassis for your goal: Milsbo Tall for tall climbing aroids (all-glass, so you mount via drilling/suction), Rudsta for a magnetic steel back that lets you reposition lights, fans, and trellises with no drilling.
• Drill, don’t run cords through the door seal: use a 2-inch hole saw with cutting oil, then deburr, seal the raw steel against rust (liquid electrical tape), and add a grommet so the metal can’t slice a cord and short.
• Light with low-heat full-spectrum LEDs (T5 in tight cabinets to avoid scorching). Green light pulls real photosynthetic weight, so ordinary white “full-spectrum” bars are fine — the white-vs-yellow choice is mostly aesthetic.
• Two non-negotiables: constant airflow (24/7 ball-bearing fans in a vortex; stagnant humid air breeds rot and mold) and no humidifier inside a sealed box (it spikes to 99% and rots electronics). A fully-planted cabinet self-regulates to ~70–85% from transpiration alone.

Watch a Philodendron melanochrysum slowly decline in a 40%-humidity living room and you understand the problem: human comfort and rainforest-understory plants want opposite climates.

The fix is a modern Wardian case — converting a steel-and-glass IKEA cabinet (Milsbo or Rudsta) into a sealed, controlled grow space. Done right, it’s not just a display; it’s a small bio-machine where you manage light, air, and moisture to mimic the forest floor. Here’s the engineering blueprint that actually works.

2. Theoretical Framework: The Physics of the Microclimate

Success depends less on the hardware than on stabilizing three interacting variables: light, air, and moisture.

2.1 The Primacy of Vapor Pressure Deficit (VPD)

Beginners fixate on relative humidity (RH) and chase arbitrary targets like “80%.” But RH is relative to temperature; the metric that actually governs plant physiology is vapor pressure deficit (VPD) — the gap between the moisture in the air and the maximum the air could hold at that temperature. VPD is the force that drives transpiration.

In a closed cabinet this is volatile: as LED lights heat the air, the air’s capacity to hold water rises, so if moisture content stays flat the VPD climbs and the air gets thirstier, pulling water from the leaves.

Too high (>1.5 kPa) and plants close their stomata to conserve water, halting photosynthesis; too low (<0.4 kPa) and the saturated air stops transpiration entirely, which also stops the transpirational pull that carries water and calcium to new leaves — causing deficiencies and collapse.

Managing VPD (the target band for tropical aroids is roughly 0.8–1.0 kPa) is what keeps stomata open and photosynthesis running.

Hitting the band means active monitoring with a logging hygrometer; a WiFi sensor lets you catch temperature spikes remotely.

Buy on Amazon (B0C39TSV2W) The honest tradeoff: a WiFi hygrometer costs more than a cheap dial gauge, but in a sealed box where light heat can spike temps while you’re out, remote alerts and data logging are what let you actually track VPD instead of guessing.

2.2 Photosynthetic Physics: PAR and Spectrum

Cabinet lighting must replace the sun across the photosynthetically active radiation (PAR) band (400–700 nm). Blue light (400–500 nm) drives compact vegetative growth and stomatal opening — a deficiency causes etiolation (stretching) — and red (600–700 nm) drives efficient photosynthesis and flowering.

Green light (500–600 nm) was long dismissed, but it’s genuinely useful: meta-analysis finds green light is about as effective as red/blue for promoting biomass and improves water-use efficiency.

(Its claimed advantage of penetrating deeper into the canopy to boost whole-plant photosynthesis is debated and not strongly supported — the practical takeaway is simply that full-spectrum white light is fine, since its green component pulls real weight.)

Intensity is measured as PPFD (µmol/m²/s), and the inverse-square law means it drops fast with distance: a light giving 200 µmol/m²/s at 6 inches may give only ~50 at 12 inches, so layout must match the lighting.

Rough PPFD targets: understory ferns/Calathea/Begonia 40–80; aroids/Philodendron/Alocasia 80–150; Monstera/Hoya/orchids 150–350.

2.3 Fluid Dynamics and Airflow

In high humidity, stagnant air is the precursor to disease: the still boundary layer clinging to a leaf saturates and chokes gas exchange, and motionless moist air is the ideal breeding ground for bacterial rot (Erwinia) and fungal pathogens (Botrytis).

The ventilation goal is gentle turbulent airflow that disrupts those boundary layers without wind burn, usually via small axial fans creating a circulatory vortex.

As a bonus, that air movement strengthens stems through thigmomorphogenesis (growth response to mechanical stimulation).

3. Structural Analysis: Selecting the Chassis

The Milsbo and Rudsta series are the two main choices, with different materials and modularity.

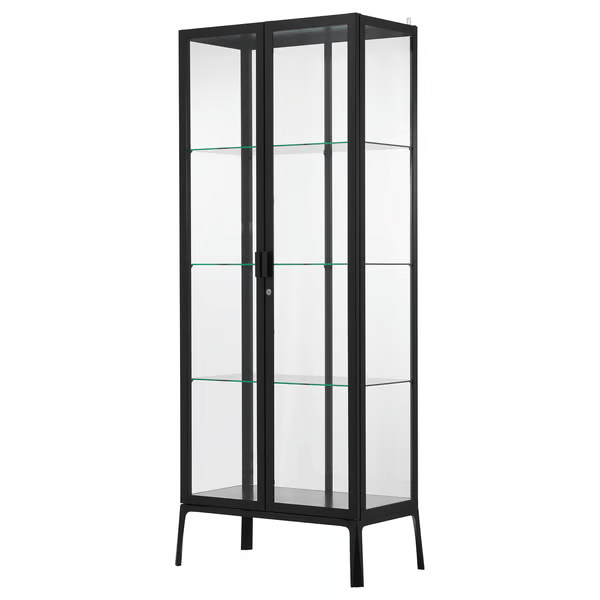

3.1 The Milsbo Series: The Vertical Giant

The Milsbo Tall (≈73 W × 175 H × 42 D cm) is the flagship for serious collectors — a powder-coated steel frame with tempered glass on all four sides. Its big vertical clearance suits mature climbing aroids on moss poles, and a locking mechanism compresses the door seals to help hold humidity.

The catch: all-glass construction has no magnetic back, so mounting fans and lights means suction cups, tension rods, or drilling the frame. The Milsbo Wide gives a landscape orientation good for propagation trays, but its wide shelves sag under heavy wet pots and often need reinforcement or thicker acrylic.

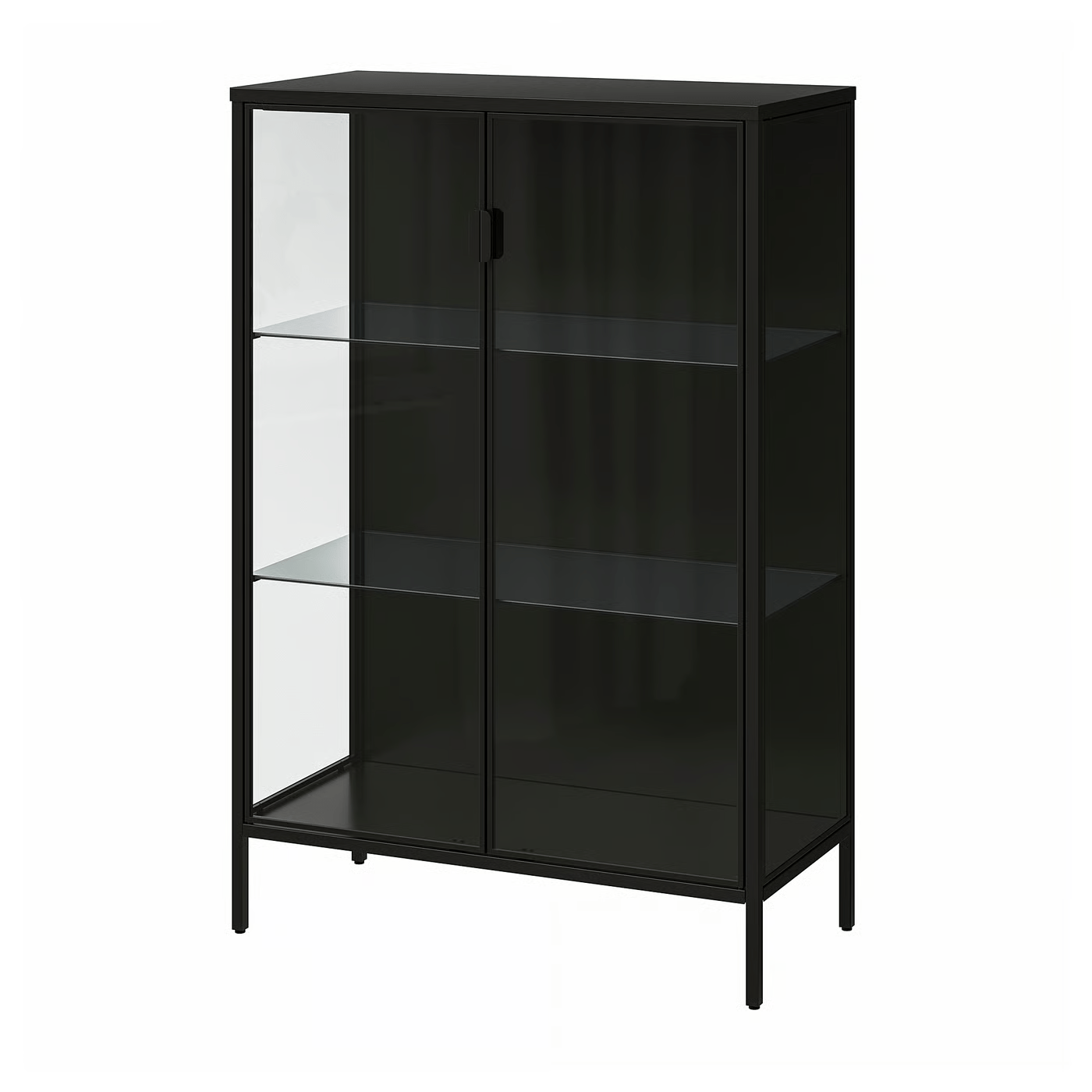

3.2 The Rudsta Series: Magnetic Utility

The Rudsta adds one critical advantage: a solid steel back panel. (Rudsta Wide ≈127 W × 92 H × 42 D cm; Rudsta Tall ≈69 W × 154 H × 37 D cm.) That metal back lets you mount lights, fans, and trellises with magnetic hooks — repositionable instantly, no adhesives or drilling.

The trade is volume: Rudsta units are generally smaller than the Milsbo Tall, capping plant size.

For a forever cabinet that accommodates plant maturity, the Milsbo Tall wins despite lacking a magnetic back; for beginners or smaller species (Hoya, jewel orchids), the Rudsta Wide is the most modification-friendly.

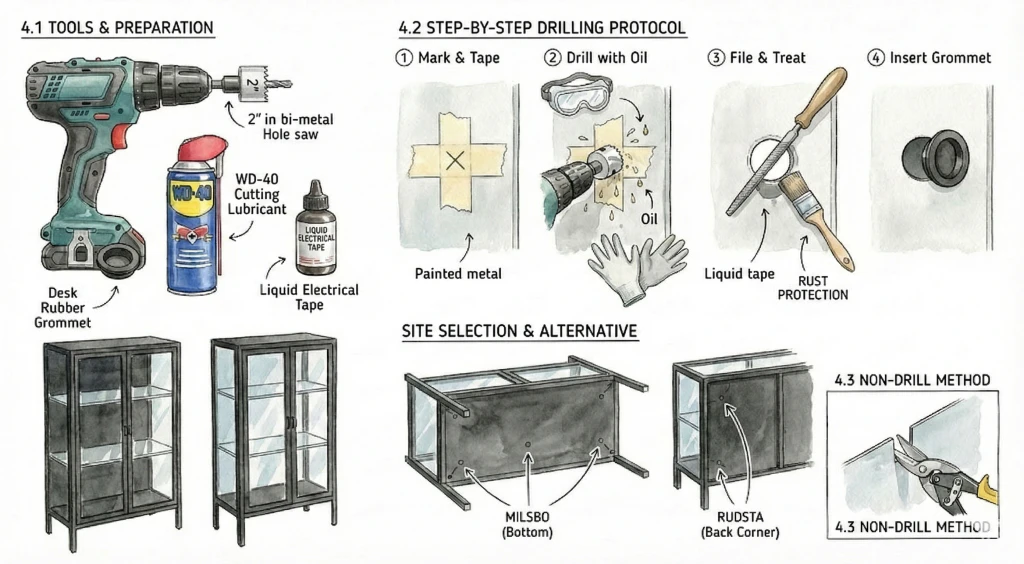

4. Construction Methodology: The Build Process

Converting a cabinet means getting power cords in without wrecking the seal. Running cords through the door gap compromises the seal and stresses the hinges, so the clean approach is the “drill method.”

4.1 Tools

A variable-speed drill; a 2-inch (51 mm) bi-metal hole saw (big enough for a 3-prong plug); cutting oil (WD-40 or machining oil) to dissipate heat; a 2-inch rubber grommet; and rust protection (clear enamel or liquid electrical tape).

4.2 Drilling Protocol

1. Site: on the Milsbo, the bottom metal plate (two layers — drill through both); on the Rudsta, the back panel’s bottom corner hides cords well. It’s far easier to drill before assembling the glass; if it’s already built, go gently to avoid shattering tempered glass with vibration.
2. Drill: mark center, cover the spot with masking tape (stops the bit walking and scratching the finish), apply cutting oil, and start slow to seat the pilot bit before increasing speed with firm, steady pressure. Don’t force it — excess pressure makes heat that warps metal and dulls teeth. Wear eye protection and gloves; metal shards eject.
3. Finish: deburr the razor edges with a round file, then — critically — seal the raw steel against the cabinet’s ~90% humidity with clear enamel or liquid electrical tape (the rubberized tape makes a thick waterproof seal). Insert the grommet so the sharp steel can’t slice a cord’s insulation and cause a short or fire.

If you can’t drill, you can notch the thin back panel with tin snips or set the back panel slightly elevated — but expect a less airtight seal and a rougher look.

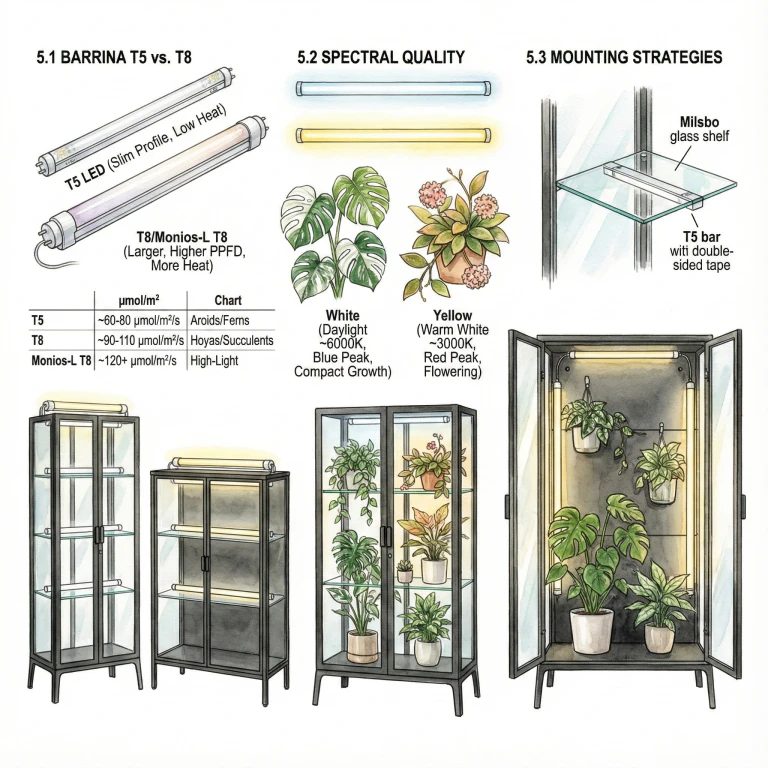

5. The Luminous Environment: Lighting Systems

Lighting is the single most consequential decision. The community standard is the slim, linkable Barrina T5/T8 LED bars.

5.1 T5 vs. T8

In LED bars this mostly means form factor and power density. T5 bars are slimmer and run cooler — the right pick for Milsbo shelves spaced 8–12 inches apart, where the lower intensity avoids photobleaching foliage at close range. T8 bars are larger and driven harder for higher PPFD — better for high-light genera or >15 inches of clearance, but they run hotter and can spike a sealed cabinet above the safe ~28 °C without aggressive ventilation.

A low-heat full-spectrum T5 is the safe default for tight cabinets, and the linkable design cuts cable clutter.

Buy on Amazon (B07V6YJKR6) The honest tradeoff: T5 bars give lower peak PPFD than hotter T8s, so for sun-hungry plants in a tall cabinet you’d step up — but for most understory aroids the cooler running temperature is exactly what protects leaves in a closed box.

5.2 Spectrum: Yellow vs. White

Both warm-white (~3000 K, yellow) and daylight (~6000 K, white) bars are full-spectrum and drive photosynthesis. White peaks higher in blue (more compact growth) and renders variegation crisply but can feel clinical; yellow leans red and warmer, blending with home decor.

The choice is mostly aesthetic — many growers mix white on lower shelves for visibility and yellow up top to soften the glow.

5.3 Mounting

On the Milsbo, adhere bars to the underside of glass shelves with heavy-duty mounting tape (3M VHB) or use magnetic clips on the metal roof. On the Rudsta, the magnetic back enables vertical lighting in the rear corners — illuminating plants from behind and the side so light reaches the lower leaves of bushy plants and reduces under-canopy leaf drop.

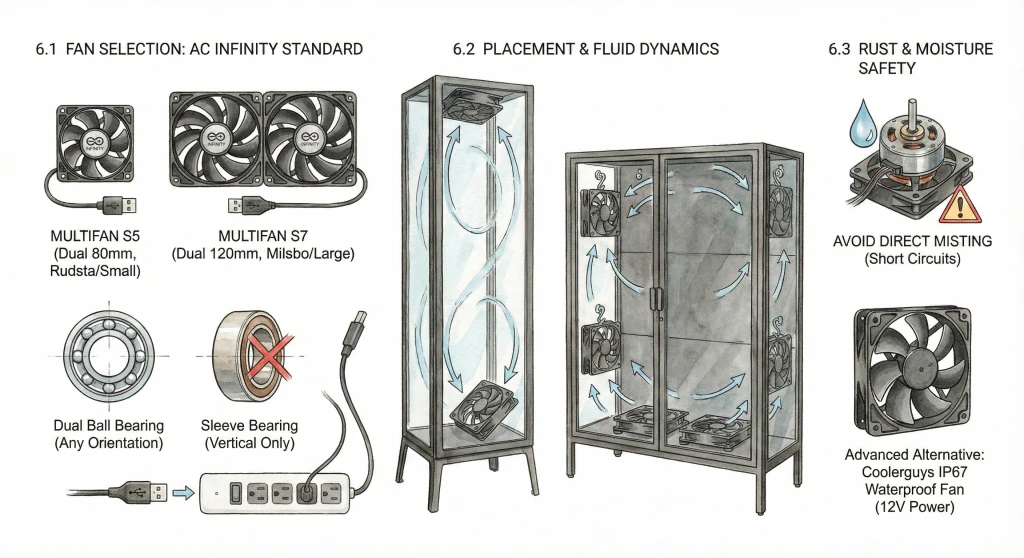

6. Atmospheric Regulation: Airflow and Ventilation

Lights without airflow in a humid cabinet guarantee mold. The system must constantly mix air to homogenize temperature and humidity.

6.1 Fan Selection

Computer case fans are the standard — long lifespan, silent. USB-powered axial fans (AC Infinity MULTIFAN) are favored because they share a smart power strip with the lights; a dual-80 mm (S5) suits the Rudsta Wide and a dual-120 mm (S7) moves the Milsbo Tall’s larger volume.

Insist on dual ball bearings, which run in any orientation — cheaper sleeve-bearing fans seize when mounted horizontally.

Buy on Amazon (B00IJ2J2K0) The honest tradeoff: ball-bearing USB fans cost a little more than generic case fans, but they can be mounted horizontally without seizing and run 24/7 for years — exactly what a humid, always-on cabinet demands.

6.2 Placement

Create a loop: one fan up top angled down, a second at the bottom angled up, producing a vortex that scrubs the front glass (cutting condensation) and pulls CO₂-depleted air off the leaves.

Mount with magnetic hooks on the Rudsta’s back, or zip-tie to wire shelves / suction-cup to glass in the Milsbo.

6.3 Moisture Safety

AC Infinity fans aren’t waterproof (no IP rating), so never mist them directly — water on the motor can short it. Builders who want misting-tolerant fans can step up to IP67 waterproof models (which need a 12 V supply rather than simple USB); for most setups, standard USB fans kept dry are fine.

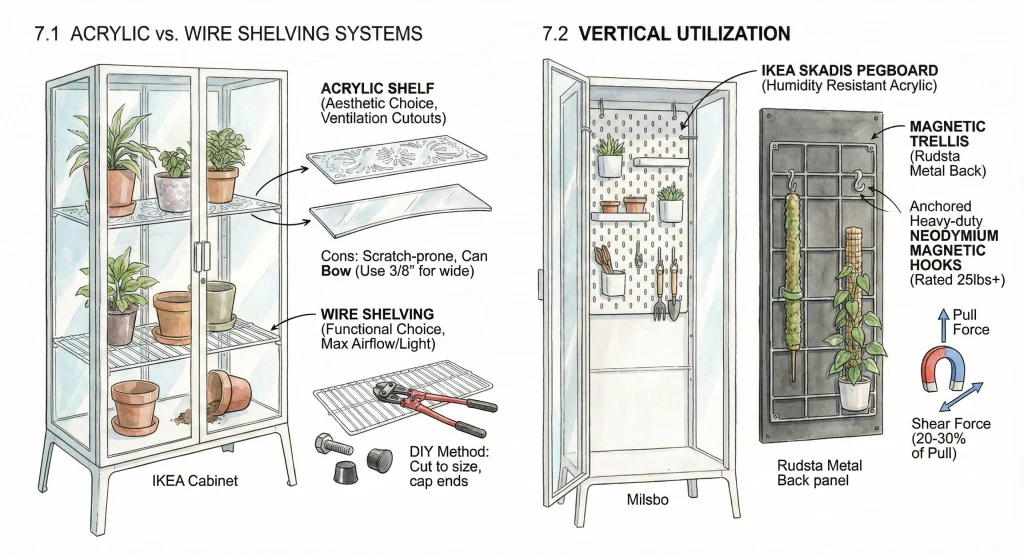

7. Interior Architecture: Shelving and Layout

IKEA’s stock glass shelves are poor for a greenhouse — they block vertical airflow and shade lower tiers. Replacing them is standard.

Acrylic shelves (custom laser-cut with ventilation cutouts) look beautiful and wipe clean, but they’re pricey, scratch-prone, and bow under heavy wet pots — use 3/8-inch thickness for the wide cabinets, not 1/4-inch. Wire shelving (repurposed closet shelving cut to size with bolt cutters, ends capped to prevent rust) gives near-100% airflow and light penetration, is cheap and durable, but looks industrial and lets small pots tip between the wires.

For vertical space, an acrylic SKADIS pegboard holds small pots, tools, and sensors. On the Rudsta’s metal back, neodymium magnetic hooks anchor moss poles and trellises — but size them correctly: a magnet’s shear force (resistance to sliding down a wall) is only ~20–30% of its rated pull force, so you need roughly a 25 lb-rated magnet to hold a 5 lb pot from sliding.

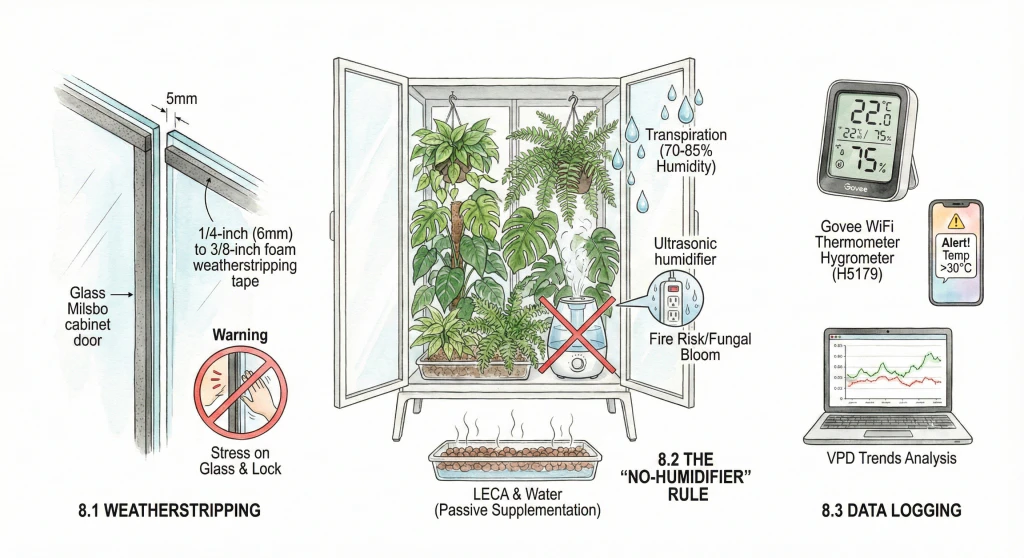

8. Environmental Control: Sealing and Monitoring

8.1 Weatherstripping

To hold the target VPD, semi-seal the cabinet. The Milsbo has a ~5 mm gap between doors; close it with 1/4-inch (6 mm) to 3/8-inch foam weatherstripping or a silicone D-profile seal. Don’t use 1/2-inch tape — it’s too thick, forcing the doors and stressing the glass and lock.

8.2 The No-Humidifier Rule

Don’t put an ultrasonic humidifier inside a sealed cabinet — it can spike humidity to 99% in minutes, condensing water on electrical components (fire risk) and triggering fungal blooms.

A cabinet fully stocked with plants self-regulates to ~70–85% through transpiration alone; if it’s low during early setup, a bottom tray of LECA and water adds gentle evaporative humidity.

8.3 Data Logging

A WiFi hygrometer/thermometer is the recommended sensor: it alerts your phone if temperature exceeds safe limits (e.g., >30 °C from light heat) while you’re away, and its exportable data lets you track VPD trends so the microclimate stays stable.

9. Substrate and Plant Selection

Because humidity is high and airflow lower than outdoors, substrate dries far slower — ordinary potting mix will rot roots. Use a chunky aroid mix (orchid bark, perlite, charcoal) for aeration, or semi-hydro (LECA/Pon), which suits a cabinet because the stable temperature prevents reservoir evaporative cooling from chilling roots.

Arrange by light/heat: Hoya, orchids, and variegated Philodendron up top; Anthurium, Alocasia, and Philodendron in the middle; ferns, Begonia, Calathea, and moss boxes on the cooler, dimmer bottom shelf.

10. Conclusion

Converting an IKEA cabinet into a greenhouse blends structural engineering with plant physiology, turning a static piece of furniture into a living bio-machine.

By managing the inputs — light spectrum and intensity, air velocity, and VPD — you don’t merely keep plants; you engineer an optimal climate for them. Build it with a Milsbo Tall or Rudsta Wide chassis, low-heat full-spectrum lighting, ball-bearing ventilation, and rigorous rust-proofing, and you’ll have a professional-grade vivarium sustaining the most delicate tropicals in the middle of an ordinary home.
