Paludarium Expanding Foam: The DIY Build Handbook

How to build paludarium backgrounds with expanding foam: the moisture-cure chemistry, isocyanate safety, sealing carved foam, beating buoyancy with egg crate, and safe silicone choices.

Patrick Ivern · 2025-12-17 · 8 min read

2. The Science: Why ‘Plastic Lava’ Actually Works (and When It Doesn’t)

Before spraying chemicals around, understand what’s happening inside the can.

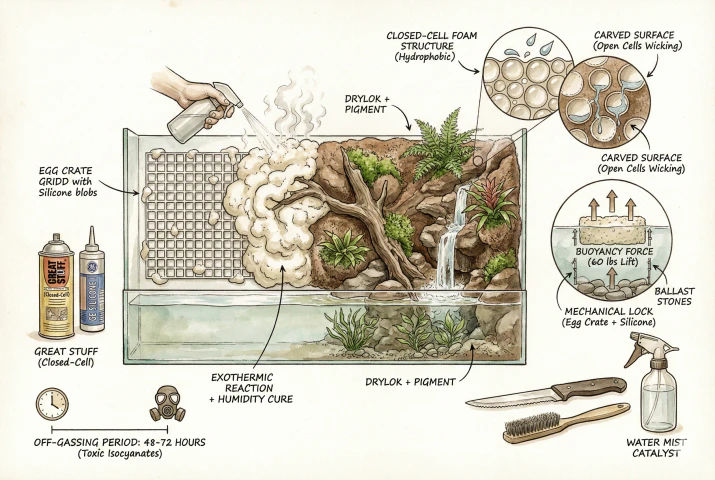

2.1 The Cure Is a Reaction, Not Drying

Foam doesn’t dry like paint — it cures. Polyurethane foam is the product of an exothermic reaction between isocyanates (usually MDI or TDI) and a polyol blend.

Pull the trigger and the pressure drop boils the blowing agent, which froths the mix to fill the gap. The hardening, though, is moisture-cure: the isocyanates react with water vapor in the air to form solid polyurethane, releasing CO₂ that expands the foam further.

What this means for you:

• Humidity is your friend. In very dry air the foam skins over but stays gooey inside because moisture can’t penetrate. That’s why builders mist the tank before and during foaming — water is the catalyst.
• The muffin top effect. The surface cures first into a skin while the inside keeps expanding; spray one massive blob and the wet center ruptures the skin like a burst egg. Build in thin layers.
• Heat. The reaction is genuinely exothermic. A thick layer traps heat in the core, charring it or leaving a brittle cell structure that carves badly. Thin passes stay cool.

2.2 Open-Cell vs. Closed-Cell

This is the most important concept for a paludarium (a tank with water). Use the wrong foam and you’ve built a sponge, not a barrier.

Most Great Stuff cans (regular and Pond & Stone) are closed-cell — which is why they float and resist water.

The catch is carving. Closed-cell foam is waterproof until you slice it: a serrated knife decapitates billions of tiny bubbles, leaving the cut surface effectively open.

Build a waterfall, carve the foam to look like rock, leave it unsealed, and capillary action wicks water into those sliced cells — behind your silicone, under your substrate — quietly turning your dry land section into a swamp that rots plants and drowns springtails. Carved foam near water must be sealed.

2.3 Isocyanates: The Real Hazard

Don’t sugarcoat this: uncured polyurethane is dangerous. Isocyanates are powerful respiratory sensitizers — a leading chemical cause of occupational asthma — and they irritate the eyes, skin, and airways. Once someone is sensitized, re-exposure can trigger severe attacks.

The rules: work in a well-ventilated area, wear gloves and an organic-vapor respirator (not just a dust mask), and keep it off your skin. If you can smell it, it’s still off-gassing. The good news: once fully polymerized, polyurethane is inert plastic — it won’t leach into the water.

The entire danger is the application and curing phase, so don’t add frogs or fish until the chemical smell is completely gone (typically 48–72 hours, longer for thick builds).

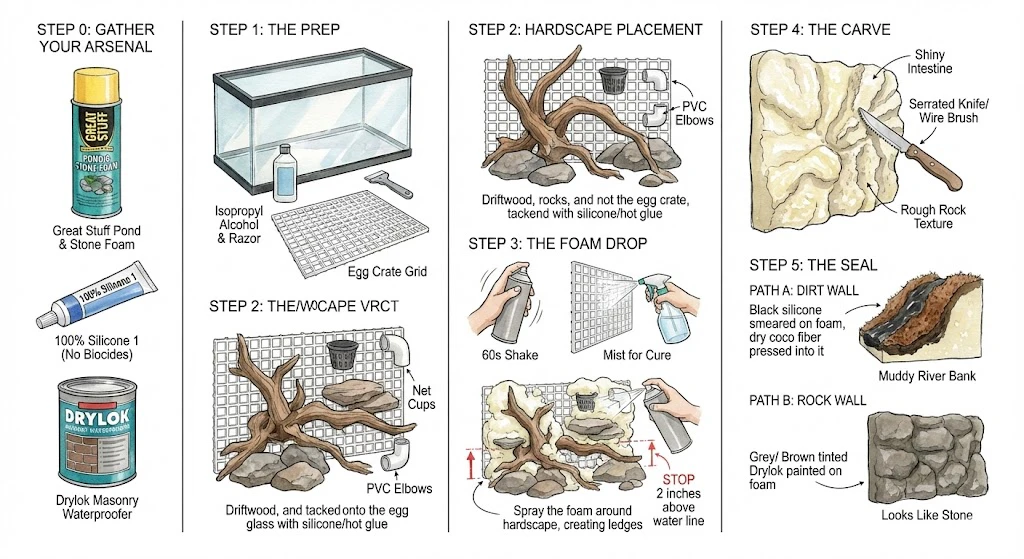

3. The Setup / Process: Building Without Regret

Step 0: Gather Your Arsenal

You need the right materials, and two of them are safety-critical.

A UV-resistant black expanding foam (Great Stuff Pond & Stone) is worth it for any spot you might not fully coat — a missed patch reads as a shadow instead of a screaming yellow blob, and the carbon-black pigment resists the UV embrittlement that turns standard cream foam into orange dust.

Buy on Amazon (B07GL5MP2X) The honest tradeoff: black Pond & Stone costs more than standard Gaps & Cracks, so if you’re coating everything in silicone and dirt anyway, the cheap yellow can is fine — save the black for waterfalls and exposed rock you can’t paint into every crevice.

For adhesion you want 100% silicone — and here safety is non-negotiable: do not use Kitchen & Bath / Mold-Free silicone. Those carry added biocides/fungicides that leach into a closed system and are documented to harm aquatic invertebrates. GE Silicone 1 (Window & Door, acetoxy) is the proven safe choice.

Buy on Amazon (B0000CBJ7W) The honest tradeoff: acetoxy silicone reeks of vinegar while curing and you must wait it out, but that’s a fair price for a sealant with a decades-long safety record — unlike the biocide-laden bathroom tubes.

For realistic rock texture, a sanded masonry waterproofer (Drylok) seals the carved foam, fills open cells, adds a paintable masonry texture, and is non-toxic once cured.

Buy on Amazon (B0014AZ3ES) The honest tradeoff: Drylok takes multiple coats and drying time versus a quick silicone-and-coco-fiber smear, but it produces a far more durable, genuinely stone-like surface for rocky builds.

Step 1: Prep (Don’t Skip)

Lay the tank on its back so gravity helps. Clean the glass with isopropyl alcohol and a razor — even a fingerprint of oil kills adhesion.

Then silicone a grid of egg crate (light-diffuser panel) to the back glass: the foam expands through the grid and locks around it, becoming mechanically inseparable.

It’s rebar for your fake rock, and it’s what prevents the background from delaminating later.

Step 2: Hardscape Placement

Arrange driftwood and rock, tacking them to the egg crate with dabs of silicone (or temporary hot glue). This is also when you foam in net cups or PVC elbows as permanent planting pockets.

Step 3: The Foam Drop

Shake the can a full 60 seconds — under-mixed propellant gives runny soup. Mist the egg crate/glass with water to kick the cure.

Then build in controlled passes: lock the base of the wood first, create ledges and bumps, and stop the foam at least 2 inches above the water line. Don’t rely on foam for underwater structure unless you’re expert at sealing — its buoyancy (below) is brutal. Use rock or glass stilts for submerged support.

Step 4: The Carve

Cured foam looks like shiny intestine, so carve it into rock with serrated knives, hacksaw blades, and wire brushes. Nature isn’t smooth — gouge holes, undercut the wood for shadows, and keep it rough. (Carve in a mask; foam dust is an irritant.)

Step 5: The Seal

Two paths. Dirt wall: smear black silicone over the carved foam and press dry coco fiber or peat heavily into it — looks like a river bank, roots love it. Rock wall: mix grey/brown acrylic paint or concrete dye into Drylok, paint 2–3 coats (dry-brush lighter shades for highlights), and the sand fills the open cells for a durable stone finish. Either way, every carved surface in the splash zone gets sealed.

4. Deep Dive / Tips: Expert Knowledge for the Cynical Builder

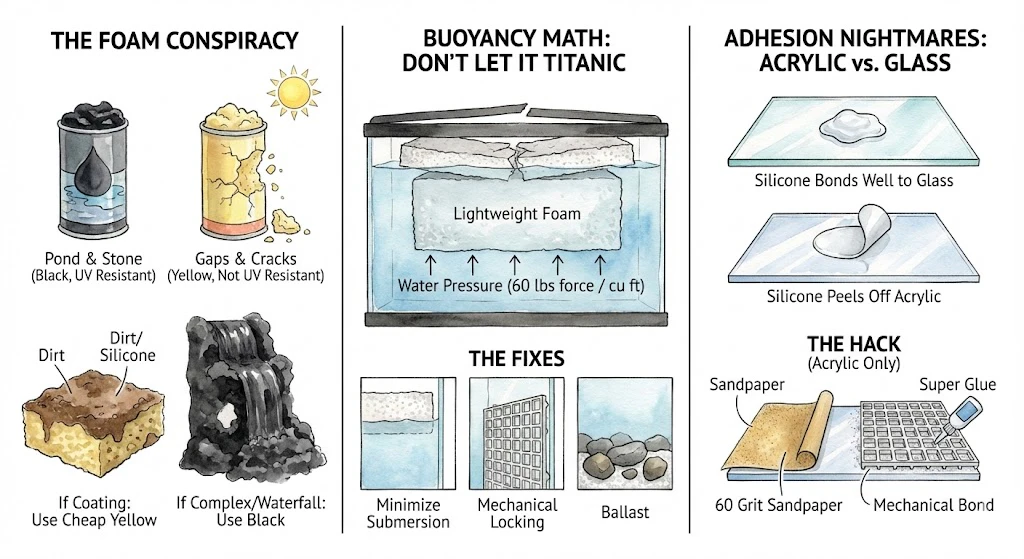

Pond & Stone vs. Gaps & Cracks

The base chemistry of the black and yellow cans is nearly identical — both are polyurethane. The real difference is UV resistance: the black Pond & Stone has carbon-black pigment, while standard Gaps & Cracks embrittles into orange dust under sunlight.

So coat-and-cover builds can use the cheap yellow; exposed waterfalls and rockwork should use the black, where a missed spot disappears as shadow instead of ruining the illusion.

Buoyancy Math: Don’t Let Your Tank Titanic

Foam floats — hard. Water weighs about 62 lbs per cubic foot; foam weighs almost nothing, so a submerged cubic foot of foam is pushed up with roughly 60 pounds of force, constantly.

That force will eventually shear the silicone off the glass and send your whole background rocketing to the surface, potentially cracking the lid or crushing inhabitants.

Defenses: design the foam to start above the waterline; if foam must go under, glue the egg crate to the glass heavily and let it cure a week before foaming; and embed heavy ballast rock at the bottom to counter the lift.

Adhesion: Acrylic vs. Glass

Silicone bonds well to glass chemically but poorly to foam mechanically — the egg crate bridges that gap. On acrylic/plexiglass, silicone does not bond; it peels off like a sticker.

For acrylic, skip silicone: scuff the surface with 60-grit sandpaper for a mechanical grip, or bond the egg crate down with cyanoacrylate (super glue) and foam over that.

A Note on Spray Rubber Sealants

People sometimes coat foam with rubberized spray sealants (Flex Seal-type) because it’s fast. Check the safety data sheet first: these are loaded with solvents like toluene and petroleum distillates to keep the rubber liquid, and those can off-gas for weeks trapped under a thick coat.

Silicone and Drylok have a long track record in the hobby — don’t gamble prize animals on a shortcut sealant with a long, uncertain cure.

5. Troubleshooting (Q&A)

“Expanding foam is toxic to frogs/fish.” False, with conditions. Uncured foam is toxic; fully cured polyurethane is inert plastic.

The poison is impatience — cure at least 48 hours and don’t add animals until the chemical smell is completely gone.

“Carved foam soaks up water like a sponge.” Partially true. Closed-cell foam is waterproof until carved, and carving opens surface cells that wick moisture.

It won’t soak through the whole block, but you must seal carved foam anywhere near water with Drylok or silicone. High-and-dry areas are fine raw.

“My background pulled away from the glass.” Usually a weak bond plus thermal expansion. Glass and foam expand at different rates, and foam sprayed straight onto glass without an egg-crate skeleton delaminates.

Inject fresh silicone behind the gap if you can reach it; next time, clean with alcohol and use the egg-crate mechanical lock.

6. Conclusion

Building a paludarium background with expanding foam is a rite of passage — but respect the medium: it’s chemistry, not magic. Use closed-cell foam, respect the cure time, mind the buoyancy, seal your work, and protect your lungs while you do it.

Follow those rules and you’ll have a lightweight, durable, stunning hardscape that lasts for years. Cut corners and you’ll have a floating, toxic mess. Now go shake that can for a full 60 seconds — your rainforest awaits.
