Iwagumi Rock Layout: Stop Flow Dead Spots

Iwagumi layouts trap detritus when stones form hidden dams. Design rock hierarchy, substrate slope, and filter flow as one system so every dead spot has an exit path.

Patrick Ivern · 2026-07-13 · 12 min read

Key Takeaways

• Point the Oyaishi with the circulation loop, not into a dead pocket.
• Leave one visible low lane where detritus can collect and be siphoned.
• Keep a baster-width service path behind every major stone group.
• Tune filter outflow before adding pumps; use small adjustable flow only if needed.
• Test ammonia and nitrite after deep-cleaning a hidden debris pocket.

An Iwagumi rock layout stays clean when every stone group has an exit path for debris. The trick is to design the rock hierarchy, substrate slope, filter return, and maintenance lane as one system before the carpet plants go in.

The classic mistake is building a beautiful rock dam. The tank looks quiet from the front, then mulm collects behind the Oyaishi, under Suteishi, and inside the carpet edge.

A clean Iwagumi does the opposite. It makes debris travel to a visible low lane or into mechanical filtration.

How do you arrange Iwagumi rocks without trapping detritus?

Start with the same Iwagumi hierarchy, but let the composition follow the water. The Oyaishi still leads the layout, Fukuishi and Soeishi still support it, and Suteishi still finish the rhythm.

The difference is that every support stone leaves a gap where water and a baster tip can pass.

ADA describes Iwagumi as a composition where the Oyaishi determines the direction of the layout. Use that as a practical rule.

If the main stone visually leans left to right, make the main circulation sweep left to right across the stone backs, then return along the foreground.

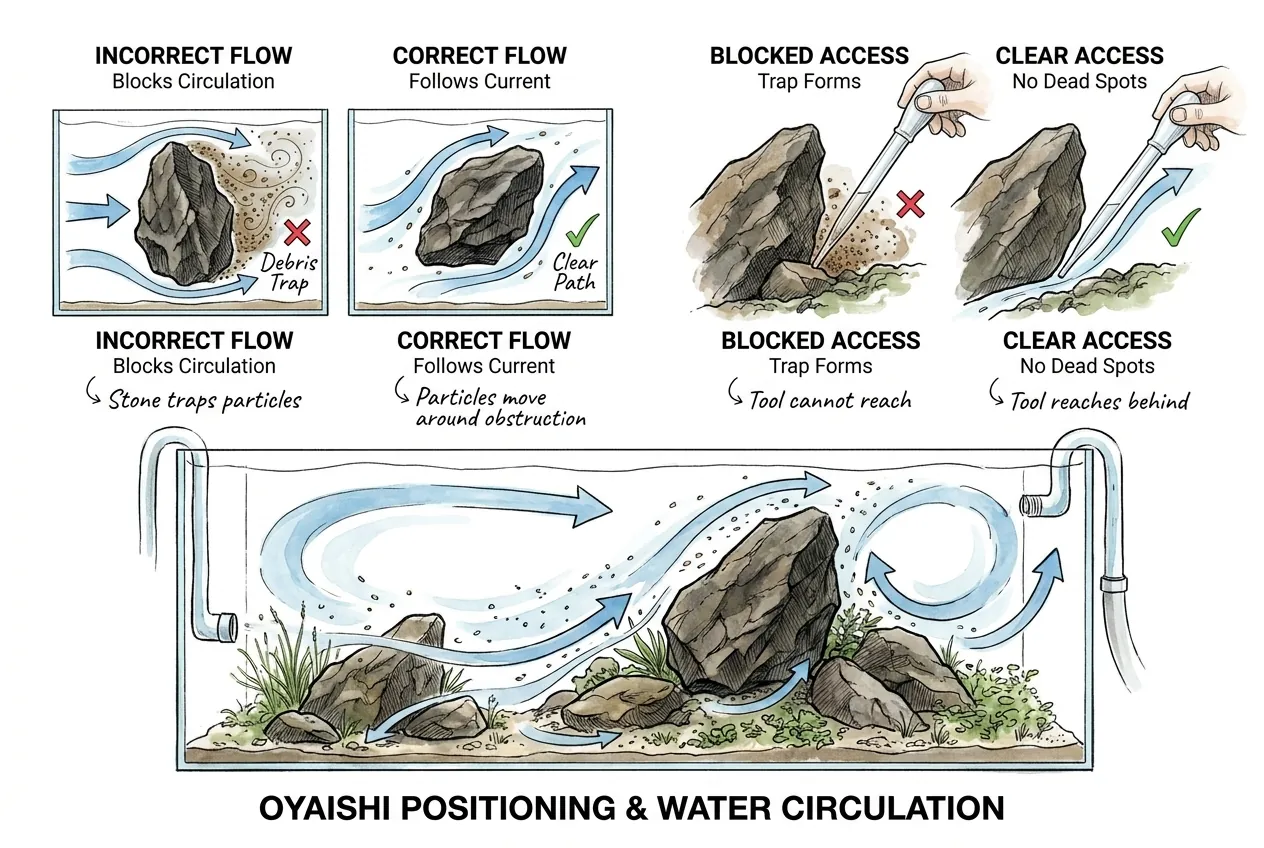

How should the main stone point the water?

The Oyaishi should point with the broad circulation loop, not against it. That suggests current to the viewer and gives particles a path around the largest obstruction.

Place the Oyaishi first, then imagine a slow particle moving around it. If that particle enters a pocket and stops, the stone is making a trap.

Rotate the stone a few degrees, or adjust the intake and return plan before adding more rocks.

The best test is physical. Before planting, pass a chopstick, turkey baster tip, or narrow siphon tube behind the Oyaishi. If the tool cannot reach the pocket, detritus will reach it and stay there.

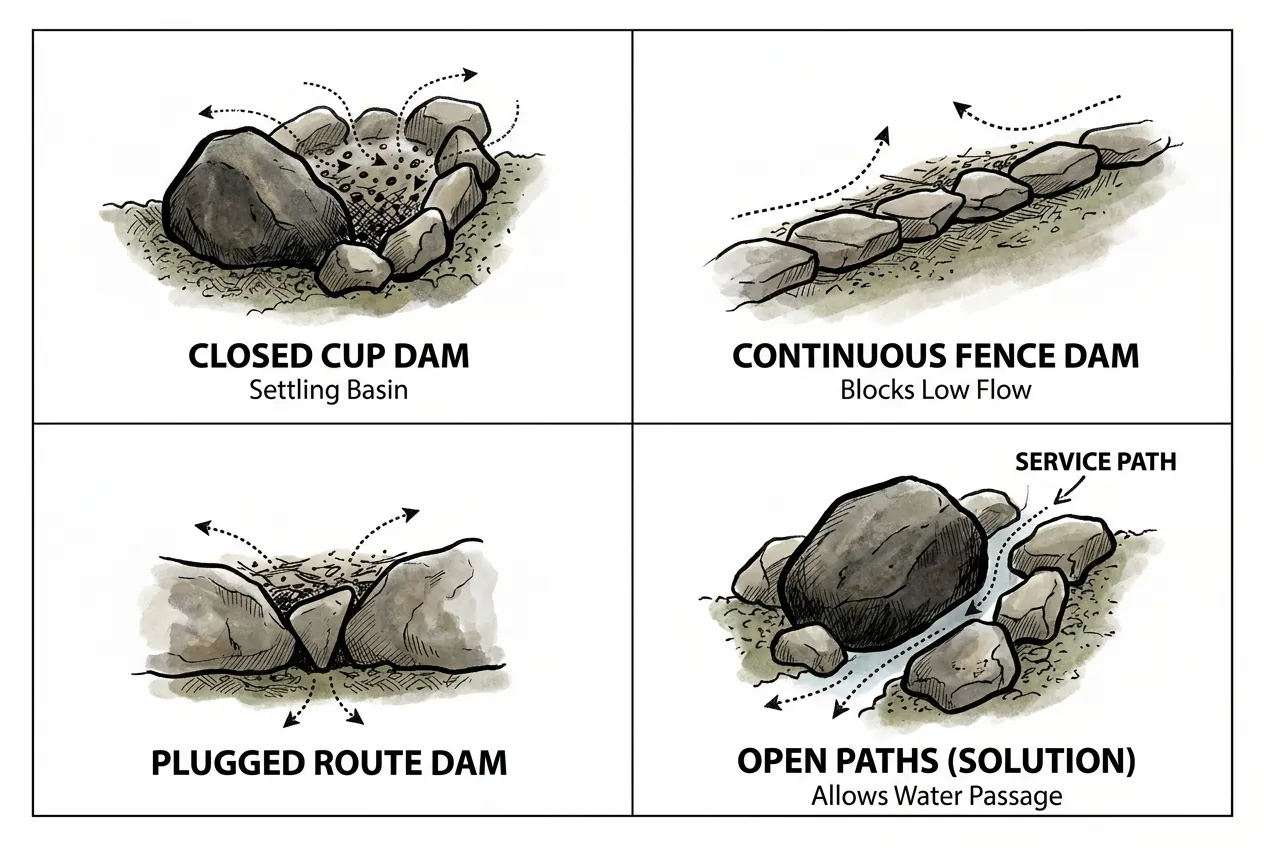

Where do supporting stones become debris dams?

Supporting stones become debris dams when they form a closed cup around the main stone. The visual group may look natural, but the hidden rear curve acts like a settling basin.

Avoid a continuous stone fence at substrate level. Stagger the Fukuishi and Soeishi so water can pass between them. Use Suteishi as visual punctuation, not as plugs in the only low route.

A simple spacing rule works well for home tanks. Leave at least one narrow service path behind each major group. It only needs to fit a baster tip or airline tube, but it must be continuous.

Where do dead spots form in an Iwagumi aquarium?

Dead spots form behind large rocks, inside V-shaped support groups, and at the edge where carpet plants meet buried stone feet. These are the places where water slows enough for mulm to settle.

Mulm itself is not automatically bad. In planted aquariums, decomposed organic matter can become part of the nutrient cycle.

The problem is hidden accumulation that cannot be seen, siphoned, or moved into filtration.

What is aquarium mulm, and should you remove it?

Aquarium mulm is decomposed organic material from fish waste, plant leaves, leftover food, microorganisms, and biofilm. You remove it when it smothers a carpet, clouds the water, or appears with ammonia or nitrite problems.

Leave a dusting in planted substrate if water tests are stable and the carpet is not covered. Remove pockets behind rocks because they are not feeding roots evenly. They are just hiding organic load where flow is weakest.

If the tank is cycled and stable, scattered mulm is mostly an aesthetic issue. If ammonia or nitrite appears after disturbing a pocket, the layout was storing more waste than the biofilter handled comfortably.

How do you find the hidden dead spot before it becomes ugly?

Use a baster test. Puff water gently behind each rock and watch whether dust exits the pocket, circles back, or settles again in the same place.

Surface ripples are not enough. A tank can have strong surface movement and still have a quiet rear pocket behind the Oyaishi. Fine particles show the truth near the substrate.

Run the test before planting, after filling, after the first trim, and after any flow change. As a rule of thumb, early checks matter most while the carpet is not yet strong enough for aggressive cleaning.

If the same brown crescent returns after every water change, do not clean harder first. Fix the path that keeps delivering debris to that crescent.

What substrate slope keeps debris visible instead of buried?

Use the substrate slope to move debris toward one visible lane. A front-low, back-high slope works only if stones do not block the route downhill.

The goal is not a sterile aquarium floor. The goal is honest dirt.

A visible foreground or side lane tells you what the tank is shedding and lets you clean it without tearing up the composition.

Where should the lowest collection lane be?

The lowest collection lane should sit where you can see it and siphon it. In many Iwagumi layouts, that means the front glass line or one front-side corner.

Do not fill this lane with decorative crumbs. Tiny stones look natural for the first photo, then become a rake that catches food dust, trimmed carpet bits, and fish waste.

The lane can be narrow. It only needs enough open substrate for gentle siphoning and enough flow for particles to arrive there instead of hiding behind the main stone.

How deeply should you bury rock bases?

Bury rock fronts enough to look natural, but do not seal the whole rear foot. A stone should feel rooted in the composition without becoming a retaining wall for waste.

The front face can disappear into the slope. The rear or downstream side should keep a slim wash-through slot. That slot is where flow, a baster, or airline tubing saves the layout later.

If moving the Oyaishi would collapse the slope, support it below the visible substrate with stable material before planting. Do not rely on a wall of small visible stones to hold back the soil.

How should filter flow move through an Iwagumi layout?

Filter flow should make one broad loop around the rock backs and toward the intake. It should not blast the carpet or leave the rear hardscape untouched.

Think of circulation as a street-sweeper route. It does not need to be violent.

It needs to pass every curb where debris collects, then carry particles to the filter or the visible cleaning lane.

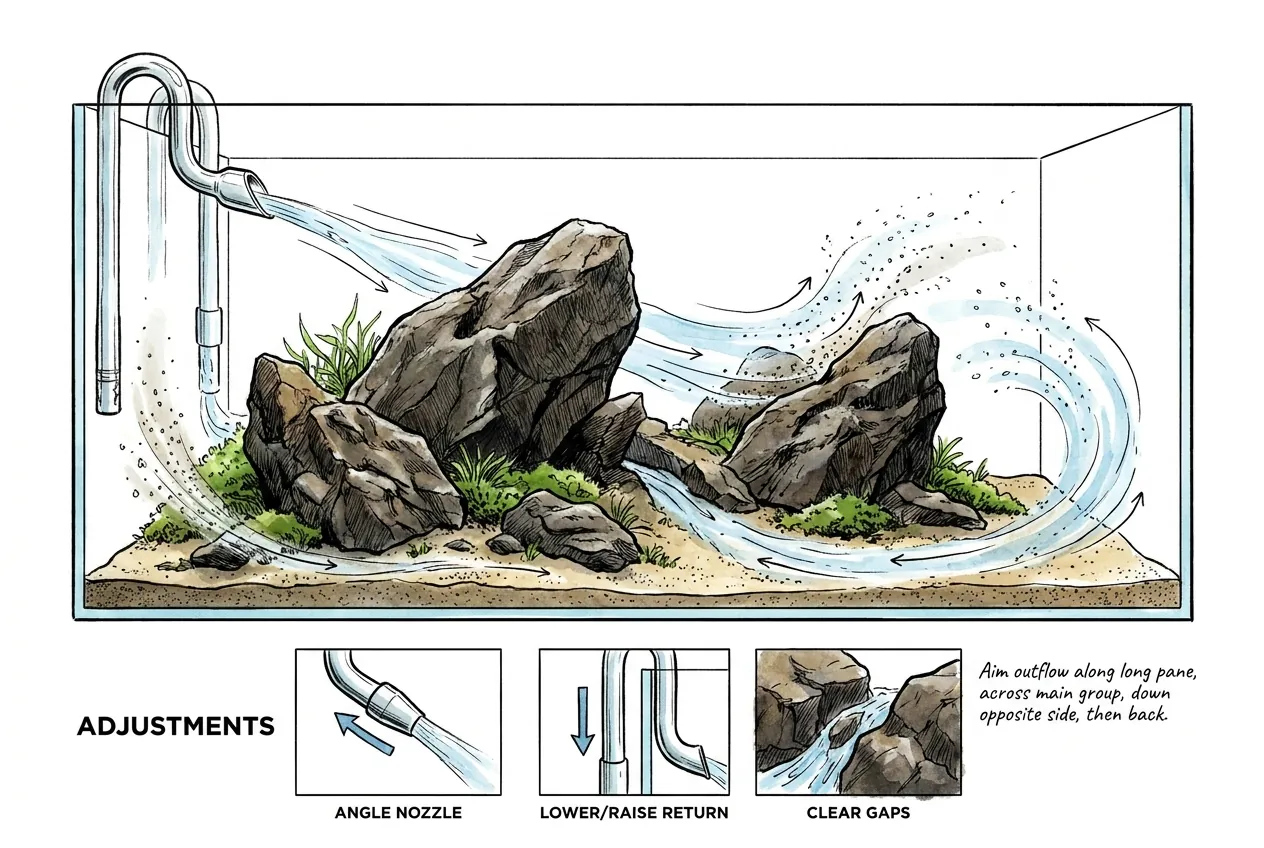

How should filter outflow cross the layout?

Aim the outflow along the long pane, across or behind the main stone group, down the opposite side, then back along the foreground. This pattern gives both the rear pocket and the front lane a job.

A lily pipe, spray bar, or hang-on-back return can all work. The deciding factor is not the hardware style. It is whether fine particles behind the rocks eventually move.

Use small adjustments before adding equipment. Change nozzle angle, lower or raise the return slightly, and clear support-stone gaps.

Add auxiliary flow only when geometry and filter placement cannot solve the pocket.

For any added pump or controller, use aquarium-rated equipment on a GFCI-protected outlet with a drip loop. Keep plugs and controllers away from splash paths, and unplug gear before moving it.

When does extra circulation help instead of hurt?

Extra circulation helps when one visible pocket keeps collecting debris after you have tuned the filter return. It hurts when the new pump uproots carpet, stresses livestock, or blows soil into the foreground.

Choose adjustable, modest flow for spot correction. EHEIM lists the CompactON pump line with small models starting at 170 liters per hour, which shows the scale of gentle auxiliary circulation.

That number is not a universal target. It is a reminder that small corrections are often enough.

The honest tradeoff is visual. Every added pump competes with the minimalist Iwagumi look. Hide it behind the hardscape only if you can still clean the intake and see what it is doing.

How do plants and carpet choices change detritus control?

Carpets make detritus control more important because low leaves catch fine particles. The fix is not skipping carpet plants.

The fix is leaving service edges and trimming before the carpet becomes a debris mat.

Iwagumi often uses a restrained plant palette, so every dirty edge is visible. That is good news. The tank tells you where the hydraulic design needs attention.

Which carpet edges need open space?

The front edge, the base of the Oyaishi, and the inside corner between support stones need open space. These are the edges where debris snags first.

Plant the carpet in small portions rather than packing every millimeter. Leave the cleaning lane bare or trimmed very short. Once the carpet matures, keep that edge clipped so water can skim the surface.

After trimming Monte Carlo, dwarf hairgrass, or similar carpets, remove large fragments first. Then baster-lift the fine bits and let the filter collect what remains. Trimming is a debris event, not just a haircut.

How does lighting make hidden detritus more visible?

Bright carpet layouts reveal dirt faster because light reaches the foreground and makes brown mulm obvious against green leaves. That is useful if you treat it as feedback.

Tropica recommends comparing light by lumens rather than only wattage because different light sources are not directly comparable by power draw. For detritus control, the practical point is simple. Brighter, cleaner-looking tanks punish lazy flow design.

If the carpet is growing fast, plan for faster trimming and more post-trim particle removal. If algae appears where debris collects, fix organics and flow before increasing light or fertilizer.

What maintenance routine keeps an Iwagumi layout clean?

Use a light routine that repeats the same checks each time. Baster-test the pockets, siphon the visible lane, clean up after trims, check filter flow, and test water after major disturbance.

The routine should protect the carpet and the biofilter. Deep-cleaning every hidden pocket at once can release organics and disturb bacteria. Clean the cause, not just the symptom.

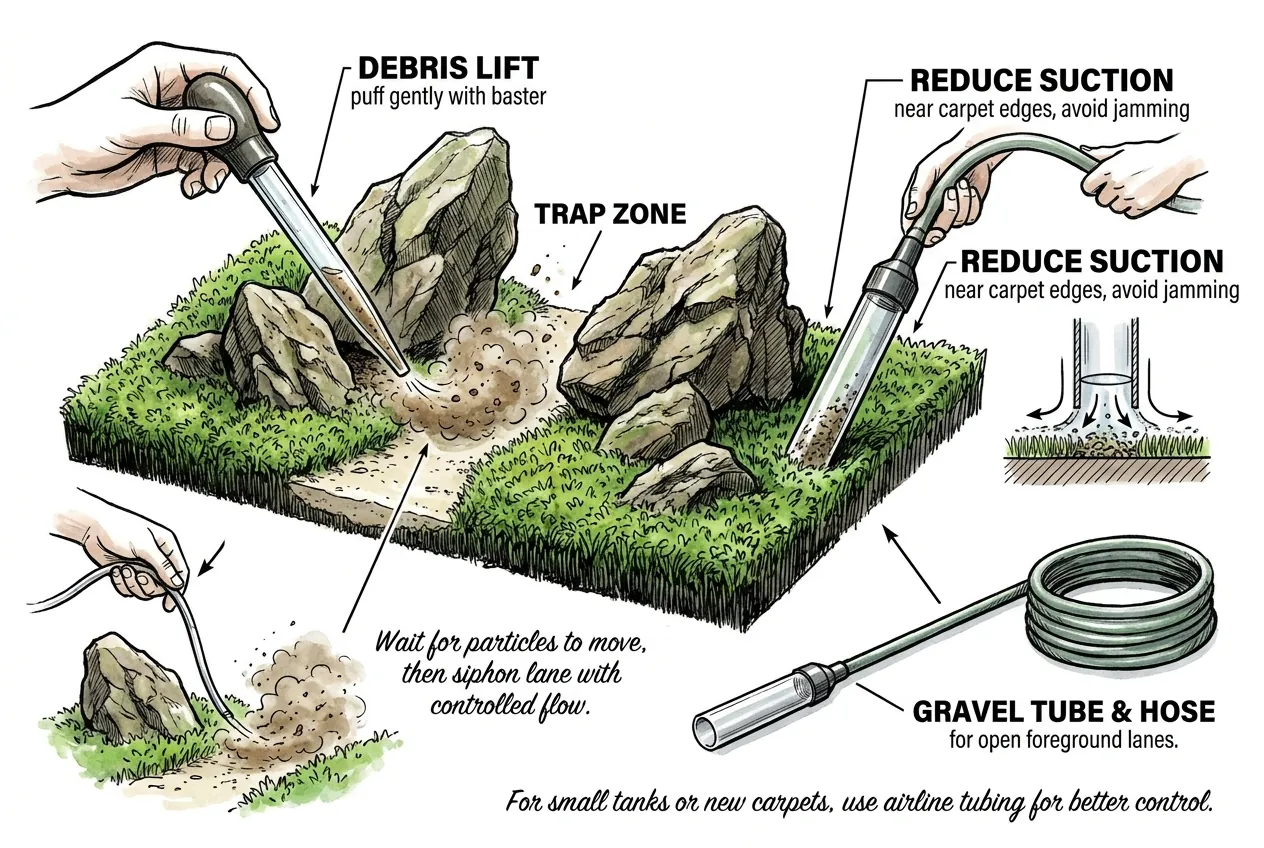

How do you clean trap zones without wrecking the carpet?

Lift debris before siphoning it. Puff the rock backs gently with a baster, wait for particles to move into the visible lane, then siphon the lane with controlled flow.

For small tanks or new carpets, use airline tubing or pinch the hose. A full gravel vac moves water fast and can pull up shallow roots.

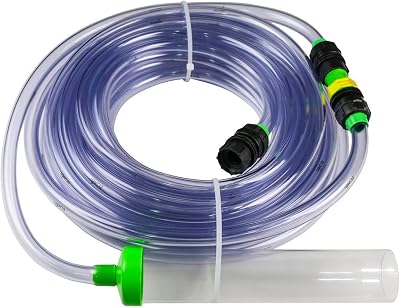

Python No Spill Clean and Fill 25 ft aquarium maintenance system is a spec-based option for tanks that sit far from a drain. Buy on Amazon (B000255NXC) The 25 ft hose length can make water changes easier, and the gravel tube fits an open foreground lane.

Use reduced suction near carpet edges, and avoid jamming the tube behind newly planted stones. The tradeoff is extra storage and setup time compared with a simple bucket siphon.

What should you test after disturbing old debris?

Test ammonia and nitrite after deep cleaning, moving stones, or releasing an old hidden pocket. If either appears, feed lightly, improve aeration, and avoid another major disturbance until the tank stabilizes.

API Freshwater Master Test Kit is a spec-based option after deep cleaning or moving stones. Buy on Amazon (B000255NCI) The kit covers 5 test types, including pH, high-range pH, ammonia, nitrite, and nitrate.

Use it to compare results with the tank baseline after major maintenance, not after every tiny baster puff. The tradeoff is slower testing than strips, with careful shaking and timing required.

The target is boring water. Ammonia and nitrite should stay at or near zero in a stable stocked aquarium.

Nitrate interpretation depends on plants, water changes, tap water, and feeding, so use trend changes instead of a single panic number.

What pre-fill checklist prevents detritus traps?

The pre-fill checklist is simple and practical. Dry-build the rocks, confirm tool access, imagine the flow loop, add substrate slope, test with particles after fill, then plant.

Do not plant first and negotiate with dead spots later.

This is the part that saves the most pain. Once roots knit through aquasoil and the Oyaishi settles, every major rock change becomes a cloudy event.

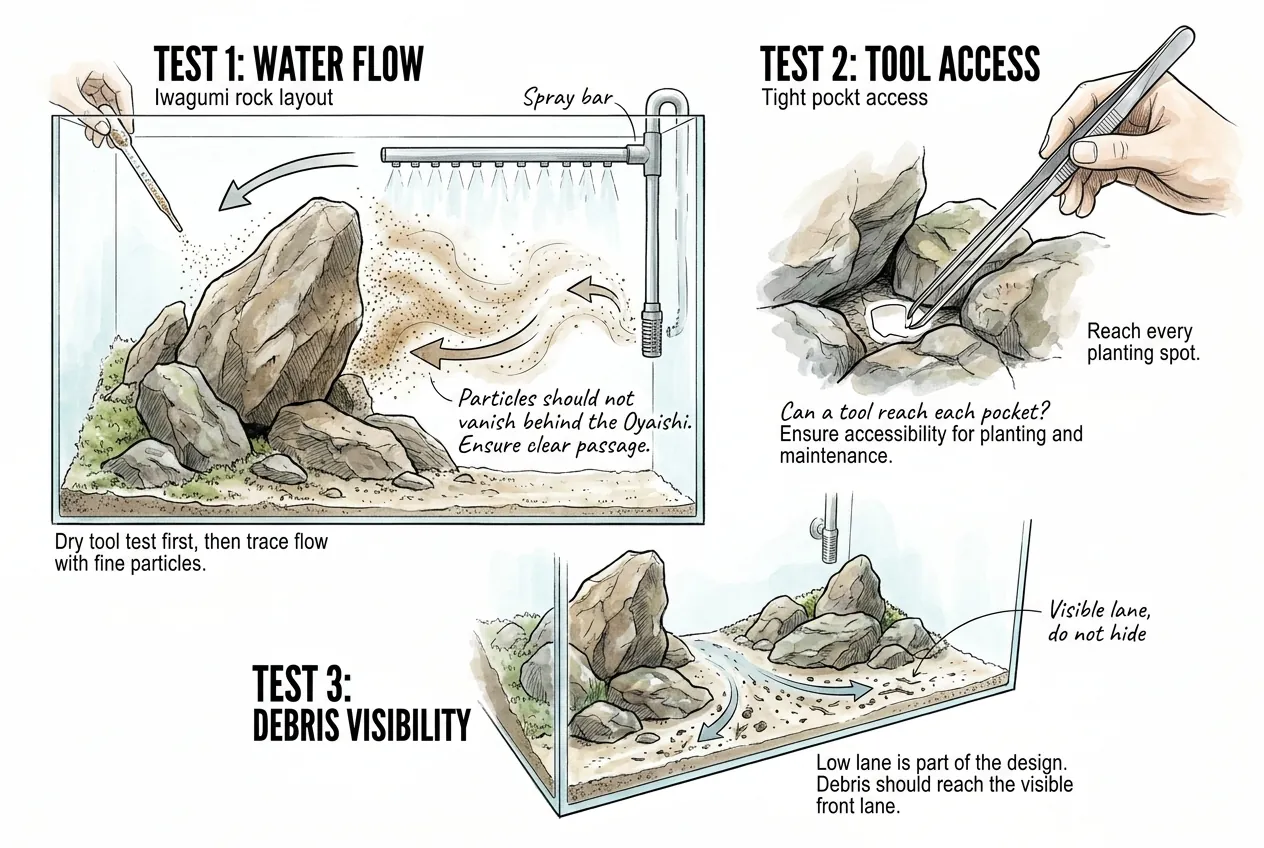

What should you test before planting?

Before planting, test whether water can pass behind each major stone. Then check whether a tool can reach each pocket and whether debris can reach the visible lane.

If any answer is no, fix the hardscape. Use a dry tool test first, then fill slowly and trace flow with a tiny pinch of fine fish food before livestock are added.

If particles vanish behind the Oyaishi, solve that before livestock and carpet roots make the layout expensive to change.

This is also the time to decide what stays visible. A clean Iwagumi should not hide every maintenance clue. The low lane is part of the design.

What if the tank is already built and collecting debris?

Fix the smallest thing first. Tune the outflow, clear a carpet edge, remove one small Suteishi, or open one rear channel before touching the Oyaishi.

If the same pocket returns, mark it during maintenance and watch it through the next maintenance check. A recurring pile means the layout is guiding debris there. One dirty day after trimming means the tank simply needs post-trim cleanup.

The main stone should be the last thing you move. In a mature Iwagumi, moving it can collapse slope, release buried organics, and damage the visual structure you were trying to save.

A clean Iwagumi is not a high-flow Iwagumi. It is a readable stone layout where every pocket has a path out, every low point can be seen, and every cleaning tool has a route in.
