What Causes Spray Drift?

The primary culprit is droplet size, specifically potentially driftable fines.

Wind speed matters, but if you are spraying fines (droplets smaller than 150 microns), they will drift even in a light breeze.

Consider the physics: a 100-micron droplet takes about 11 seconds to fall 10 feet, and in that time a 5 mph wind can push it over 40 feet sideways.

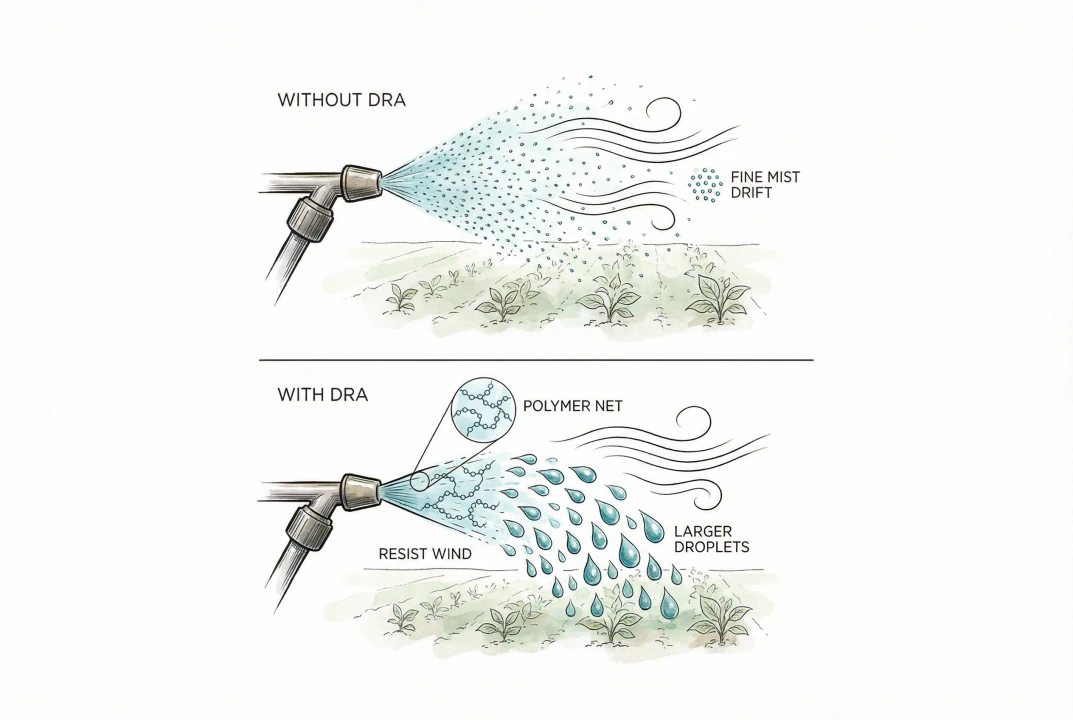

How do DRAs Prevent This?

They create larger, heavier droplets that resist wind.

Most DRAs work by modifying the viscosity (thickness) or elasticity of the fluid. When the liquid sheet exits the nozzle, it stretches.

A DRA creates a net (usually polymer chains) that holds the fluid together longer, causing it to snap into larger droplets instead of shattering into a mist of fines.

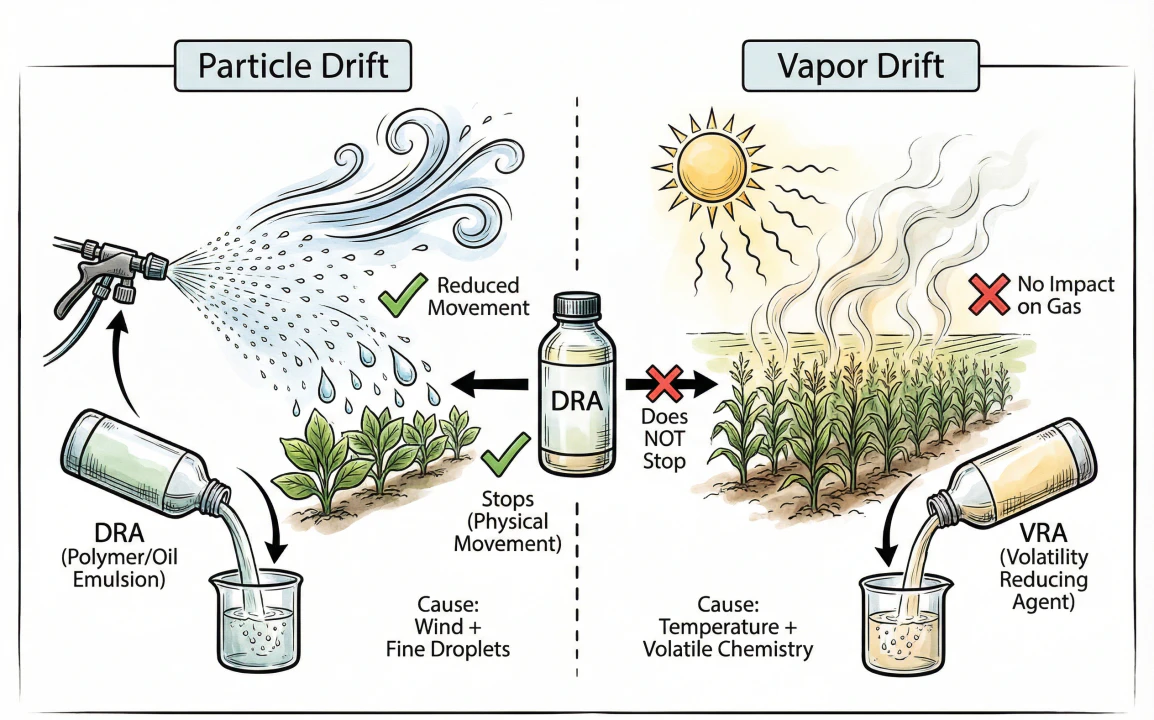

Does a DRA Stop All Types of Drift?

No. DRAs only stop particle drift (physical movement).

They do not stop vapor drift (volatility). If you spray Dicamba or 2,4-D Ester in high heat, it can turn into a gas hours later and move miles. No polymer adjuvant can stop a gas.

This distinction matters: you need a specific Volatility Reducing Agent (VRA) for vapor drift. Do not confuse the two.

Which Type of DRA Should I Use?

The two main classes are Polymers (PAM/Guar) and Oil Emulsions. Choosing the wrong one can ruin your spray pattern.

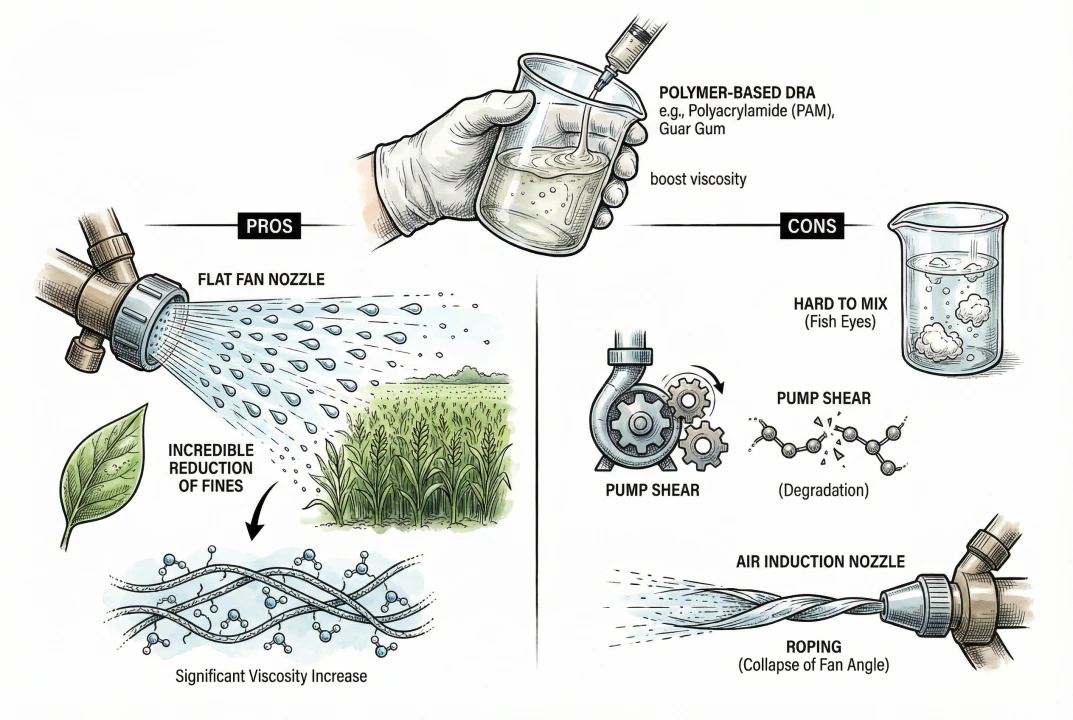

Why Choose a Polymer-Based DRA?

These are best for maximum drift reduction but are tricky to handle. These often use Polyacrylamide (PAM) or Guar gum. They significantly boost viscosity.

• Pros: Incredible reduction of fines. Works well with flat fan nozzles.
• Cons: Can be hard to mix (fish eyes). Susceptible to pump shear (degradation). Can cause roping (collapse of fan angle) if used with Air Induction nozzles.

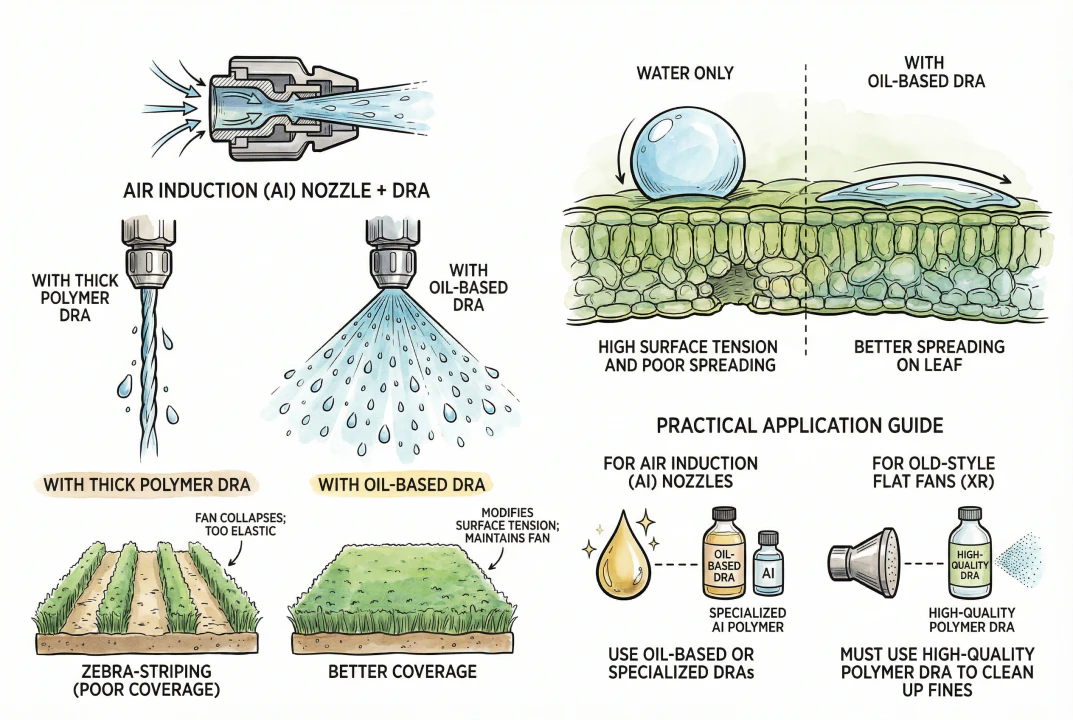

Why Choose an Oil-Based DRA?

These are user-friendly and great for coverage. These modify the surface tension and the spray sheet structure rather than just thickening the water.

• Pros: Better spreading on the leaf. Less likely to collapse the pattern of an Air Induction nozzle.
• Cons: Slightly less aggressive at stopping ultra-fines compared to heavy polymers.

Can I Use Any DRA With Any Nozzle?

No. Using a thick polymer DRA with an Air Induction (AI) nozzle is often a mistake.

AI nozzles already create coarse droplets by sucking air into the fluid. If you add a thick polymer, the fluid becomes too elastic to expand.

The fan collapses into a rope or stream, causing zebra-striping in the field (poor coverage).

As a rule of thumb:

• If using AI nozzles, stick to Oil-based DRAs or polymers specialized for AI tips.
• If using old-style Flat Fans (XR), you must use a high-quality Polymer DRA to clean up the fines.

Practical Application Guide

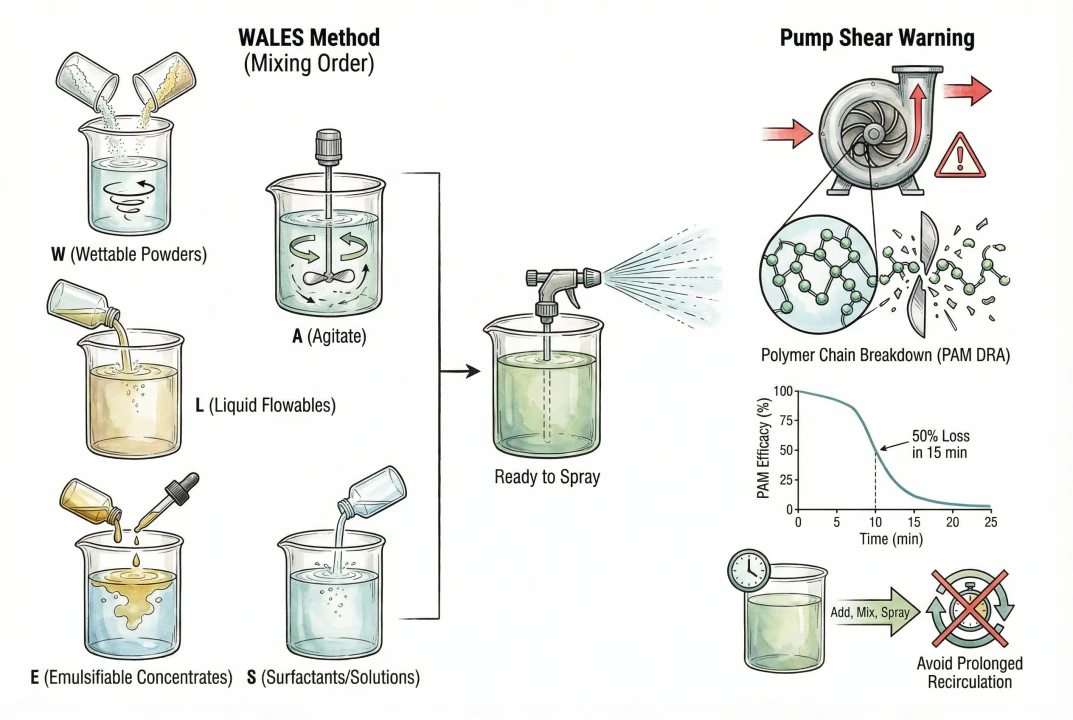

How Do I Mix Correctly to Avoid Problems?

Follow the WALES method and watch out for Pump Shear.

Pump Shear happens when a centrifugal pump creates so much pressure it slices the polymer chains of a DRA. If you recirculate a PAM-based DRA for 15 minutes, you might lose 50% of its efficacy.

Mixing Steps

1. Jar Test: Always test compatibility in a jar first.
2. Order: Usually, DRAs go in after conditioners but before the active chemicals (check label).
3. Agitation: Add it, mix it, and spray. Do not let it recirculate for hours.

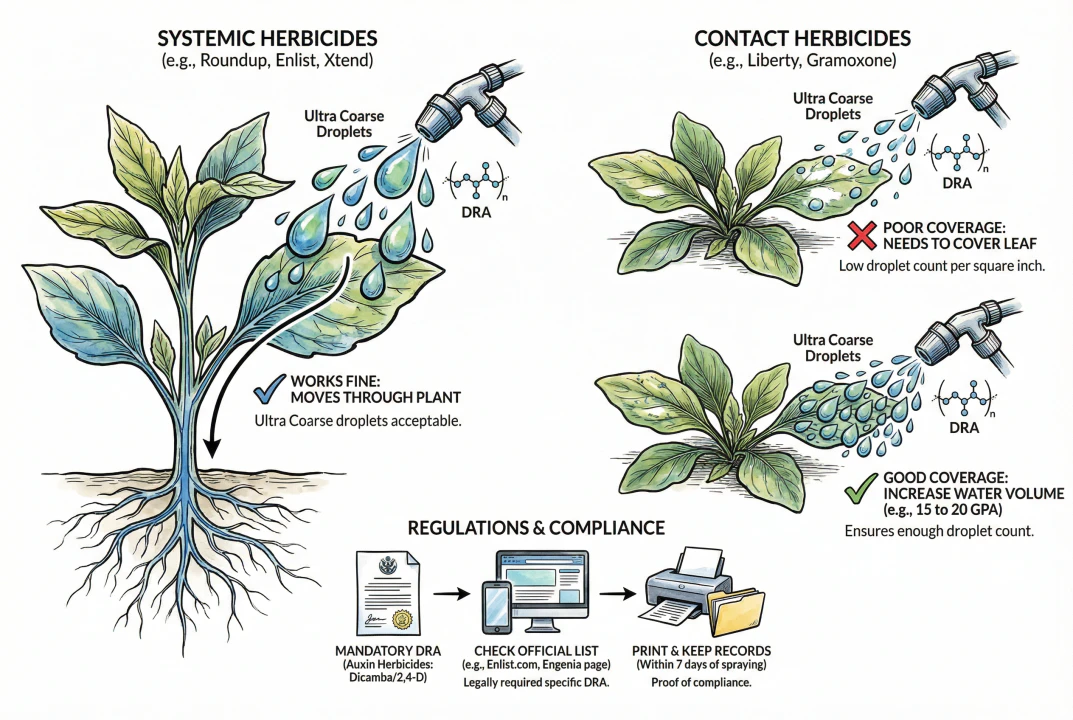

Will Big Droplets Reduce My Weed Control?

Not for systemics, but yes for contact killers.

• Systemic (Roundup, Enlist, Xtend): These move through the plant. Ultra Coarse droplets work fine.
• Contact (Liberty, Gramoxone): These need to cover the leaf. If you use a DRA to make Ultra Coarse droplets, you must increase your water volume (e.g., go from 15 to 20 Gallons Per Acre) to ensure you have enough droplet count per square inch.

Regulations and Compliance

Is a DRA mandatory?

Yes, for Auxin herbicides (Dicamba/2,4-D).

You are legally required to use a specific DRA listed on the manufacturer’s website (e.g., Enlist.com or the Engenia tank mix page). Using a generic off-the-shelf polymer that is not on the list is a violation of federal law.

Treat the approved-DRA list, the label rate, the weather restrictions, and applicator licensing as legal requirements, not suggestions; the liability for an off-label application falls on you.

Always check the website within 7 days of spraying and print the list for your records.

Troubleshooting & Problem-Solving

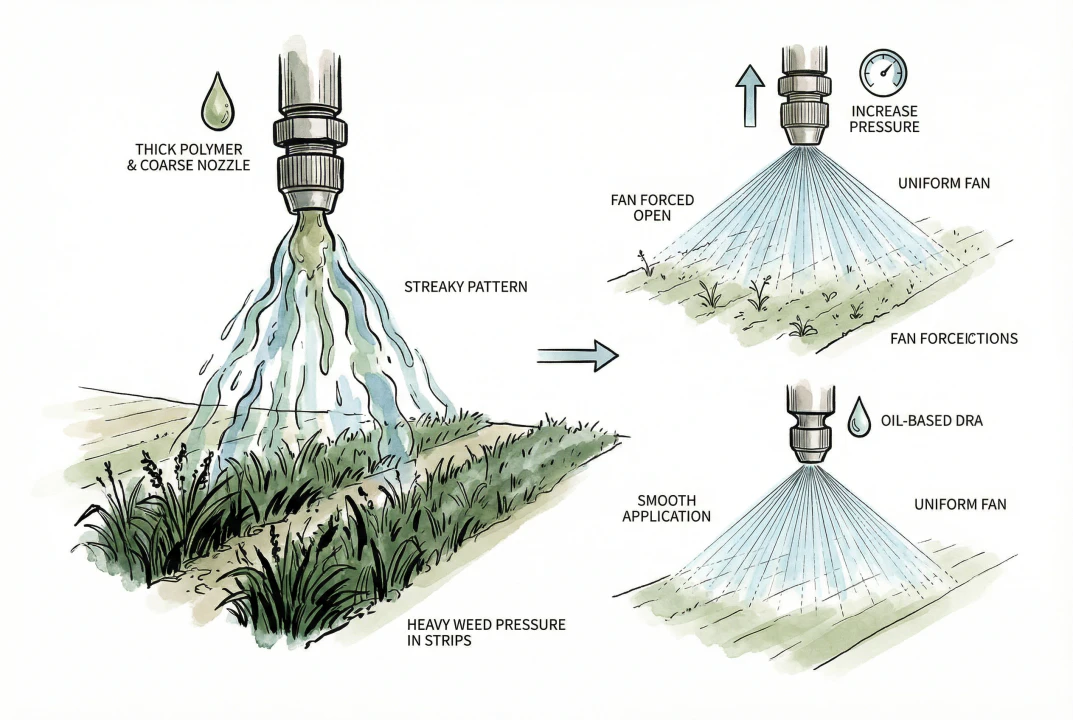

Why is My Pattern Streaking?

You likely paired a thick polymer with a coarse AI nozzle.

Look for heavy weed pressure in strips and a nozzle pattern that looks like a garden hose instead of a fan.

Solution: Increase pressure to force the fan open or switch to an oil-based DRA.

Why are My Screens Clogged?

You have an incompatibility, often called mayonnaise or cottage cheese in the filters.

Solution: Clean everything. Next time, pre-slurry your DRA in a separate bucket of warm water before adding to the tank.

Many polymer DRAs react instantly with cold water or other fertilizers if not diluted first.

The chemical DRAs themselves are restricted, dealer-only inputs, but the decisions around them are not. Managing drift starts with measuring the wind: a Kestrel pocket wind meter reads wind speed, temperature, and humidity instantly, so hold it at boom height for about 30 seconds before you pull the trigger rather than guessing at eye level.

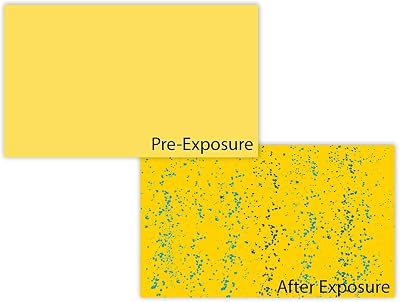

To confirm your droplets are actually landing, staple water-sensitive spray paper to leaves at several heights, make one pass, and read where it turns blue.

It is the simplest way to check that a coarse, drift-reduced spray is not leaving coverage gaps.
